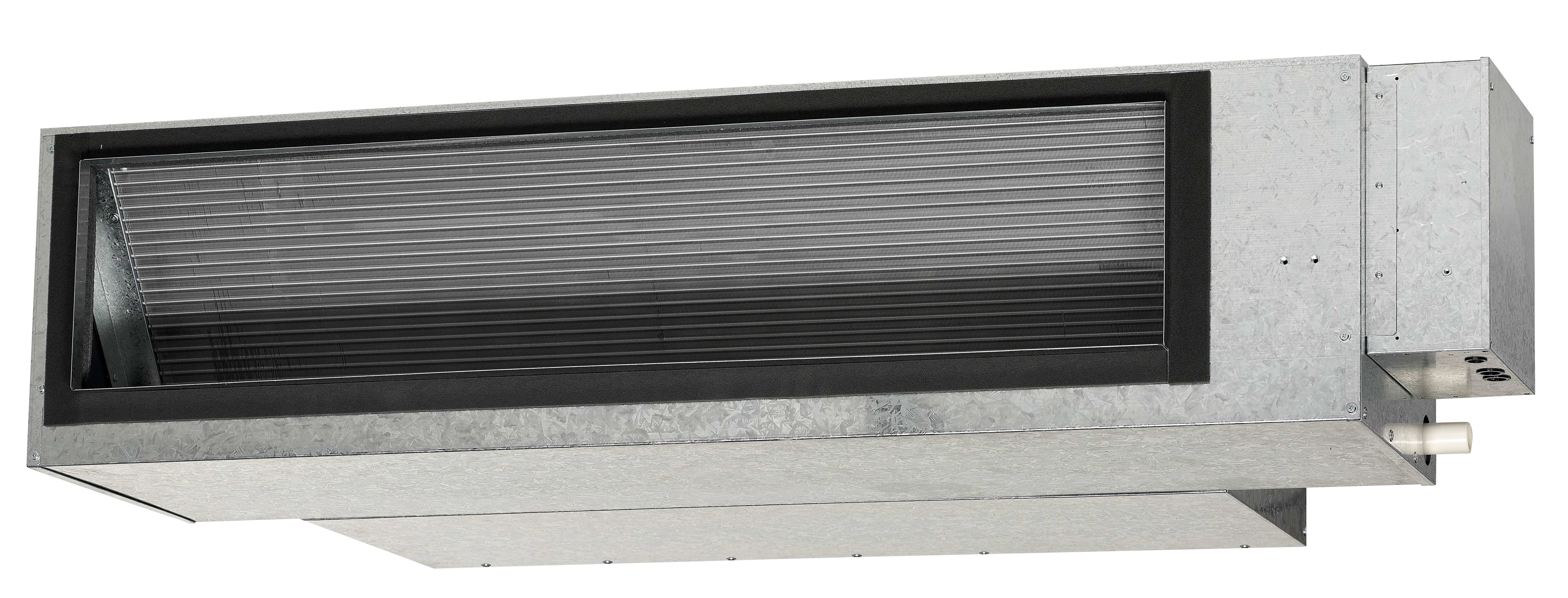

Product number: FDYA125AV1
Daikin
| Product Group : | Ducted Systems - Daikin |
|---|---|
| Cooling Capacity : | 12.5 kW |
| EER : | 3.62 |
| Heating Capacity : | 15.0 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Refrigerant : | R32 |
| Product Group : | Ducted Systems - Daikin |
|---|
| Indoor/ Outdoor/ Other : | Indoor |
|---|
| Cooling Capacity : | 12.5 kW | Cooling Capacity (Min/Rated/Max) : | 5.0 - 12.5 - 15.0 kW |
|---|---|---|---|
| Heating Capacity : | 15.0 kW | Heating Capacity (Min/Rated/Max) : | 5.1 - 15.0 - 16.0 kW |
| Max Current : | 32 A | Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|
| EER : | 3.62 |
|---|
| Depth : | 935 mm | Height : | 360 mm |
|---|---|---|---|
| Net Weight : | 56 kg | Width : | 1520 mm |
| Refrigerant : | R32 | Refrigerant Pipe Size : | 3/8 - 5/8 in |
|---|
| Wire Diameter Interconnection Cable : | 3C + E |
|---|
