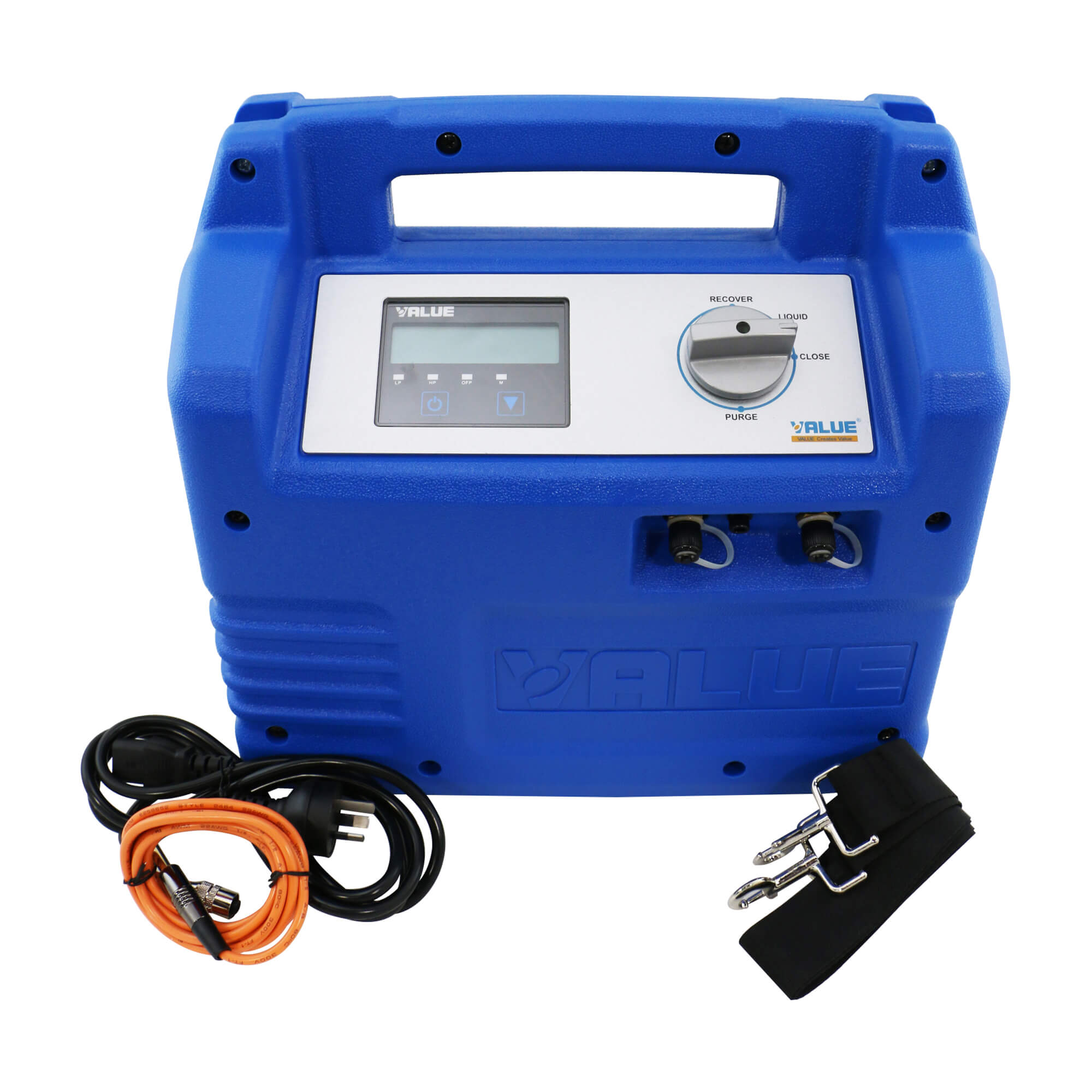

Value R32 Reclaim Unit 1HP Brushless DC Motor

Product number: VRR24M

Product Group : Refrigerant Recovery Machines
Description
This reclaim unit has a light, single horsepower DC brushless motor for quick refrigerant recovery (Cat III, IV and V) and an oil free compressor suited to all common refrigerants. The self-purge function prevents mixing of various refrigerants. One key operation and an easy to read, backlit display make the unit easy to use. Suitable for refrigerant categories III, IV and V. (Ask your ACD Trade team for category III and IV refrigerants.)Category V – R32, R410a, R402a, R404a, R407a, R407b, R507Cat V refrigerant recovery rates: - Vapour 0.54 kg/min- Liquid 4.20 kg/min- Push/Pull 9.50 kg/minPower Supply 220-240/50/60 V/Ph/Hz1 HP brushless DC motor3000 rpm motor speed6.5A maximal current drawOil-less, air-cooled, piston style compressor38.5 bar / 3850 kPa (558 psi) automatic safety shut-off0°C – 40°C operating temperatureWeighs 11 kg
General Information
Product Group : Refrigerant Recovery Machines
Measurements
Net Weight : 11 kg
File name Document Type Extension Size
vrr24m-leaflet-en-ast-2038868.pdf Brochures pdf 2.74 MB
