Description

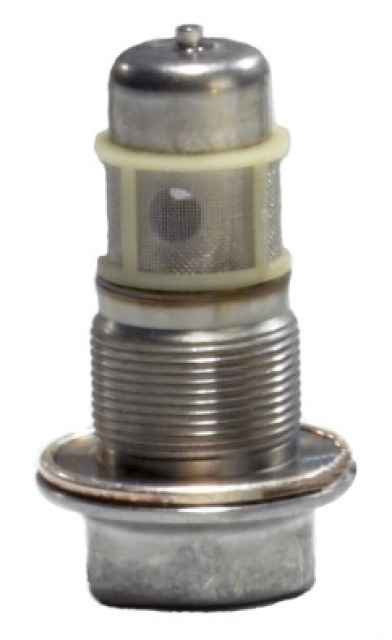

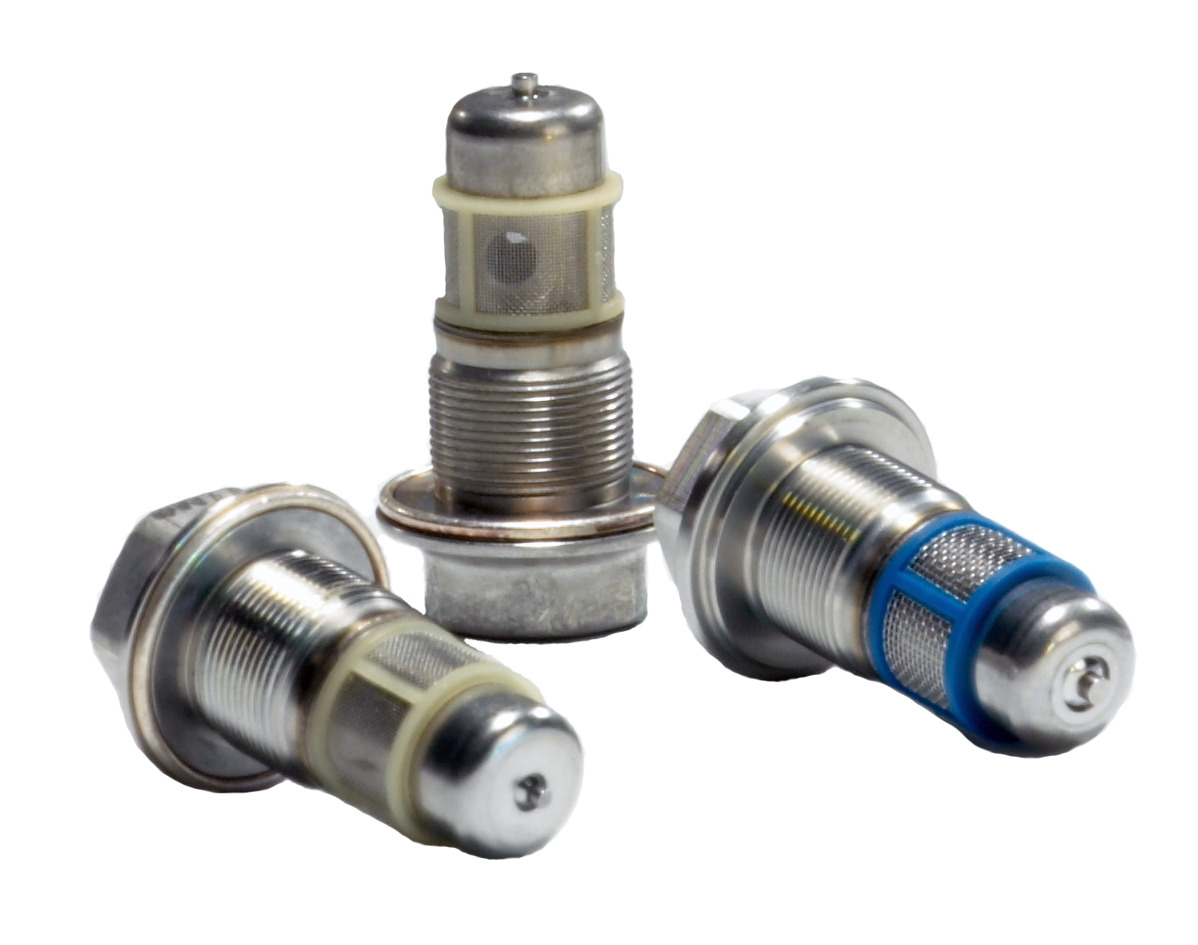

Orifice No 09 for TUA
TUA Orifice No 9 Danfoss
Product number: 068U1039
Danfoss
| Product Group : | Expansion Valves - Danfoss |
|---|
General Information
| Model Number : | 068U1039 | Product Group : | Expansion Valves - Danfoss |
|---|---|---|---|
| Type : | Orifice | Used For : | TUA/TUAE |
Additional Info
| Family : | TU/TC |
|---|
Logistical Information
| Commodity Code : | 84819000 | Country Of Origin : | DNK |
|---|---|---|---|
| EAN : | 5702422186878 | Gross Weight : | 0.048 kg |
Material
| Body Material : | Stainless Steel |
|---|
Measurements
| Net Weight : | 0.04 kg | Weight : | 0.04 kg |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R134a, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R507A, R513A |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Temperature Range : | -40-10 °C |
|---|
Valves
| Direction : | Straightway | Fluid Group : | 1 |
|---|---|---|---|
| Orifice : | 9 in | Orifice Size : | 9 |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| service-guide-service-on-ice-machines-with-r404a-type-tu-service-kit-ast-ax217486435877en-us0101.pdf | Technical Literature | 419.93 KB | |
| thermostatic-expansion-valve-type-tu-and-tc-ast-ai308624347152en-000302.pdf | Technical Literature | 7.4 MB | |
| manufacturer-s-declaration-danfoss-md-068u9615-10-ast-id365946712629-0401.pdf | Conformity Declaration | 454.44 KB | |
| brochure-overview-brochure-thermostatic-expansion-valves-en-ast-ad135086437198en-000601.pdf | Brochures | 7.14 MB |
