Sinclair Vision 8.2kW R32 ID 1/4 x 1/2

Product number: SIHA-28BV

Sinclair Vision 8.2kW R32 ID 1/4 x 1/2
Sinclair Vision 8.2kW R32 ID 1/4 x 1/2
Sinclair Vision 8.2kW R32 ID 1/4 x 1/2
Sinclair Vision 8.2kW R32 ID 1/4 x 1/2
Cooling Capacity : 8.2 kW
EER : 3.41
Heating Capacity : 8.4 kW
Indoor/ Outdoor/ Other : Indoor
Pre-Equipped Wifi : Yes
Product Group : Hi-Wall - Sinclair
Refrigerant : R32
Description

Experience reliable year-round comfort, energy-efficient performance, and smart control with the SINCLAIR Vision Series. Designed for Australian homes, the Vision Series combines advanced inverter technology, built-in WiFi connectivity, and intelligent comfort features to deliver efficient heating and cooling in every season.

  • Energy-efficient inverter technology for reliable heating and cooling
  • 1-Watt Standby function helps minimise power consumption when not in use
  • Blue Fin protection for improved corrosion resistance and longer service life
  • 7-Speed Fan provides greater airflow flexibility and comfort control
  • I Feel Function automatically adjusts operation based on the temperature and the location of the remote control
  • Turbo Mode rapidly cools or heats the room for fast comfort when needed
  • Built-in WiFi control for convenient operation from anywhere via smartphone
  • Quiet operation for enhanced everyday comfort
  • Environmentally friendly R32 refrigerant for improved efficiency and lower environmental impact
  • Available in multiple capacities to suit bedrooms, living areas and open-plan spaces
  • Designed for easy installation, maintenance and long-term reliability
General Information
Colour : White Moisture Removal Volume : 2.8 L/h

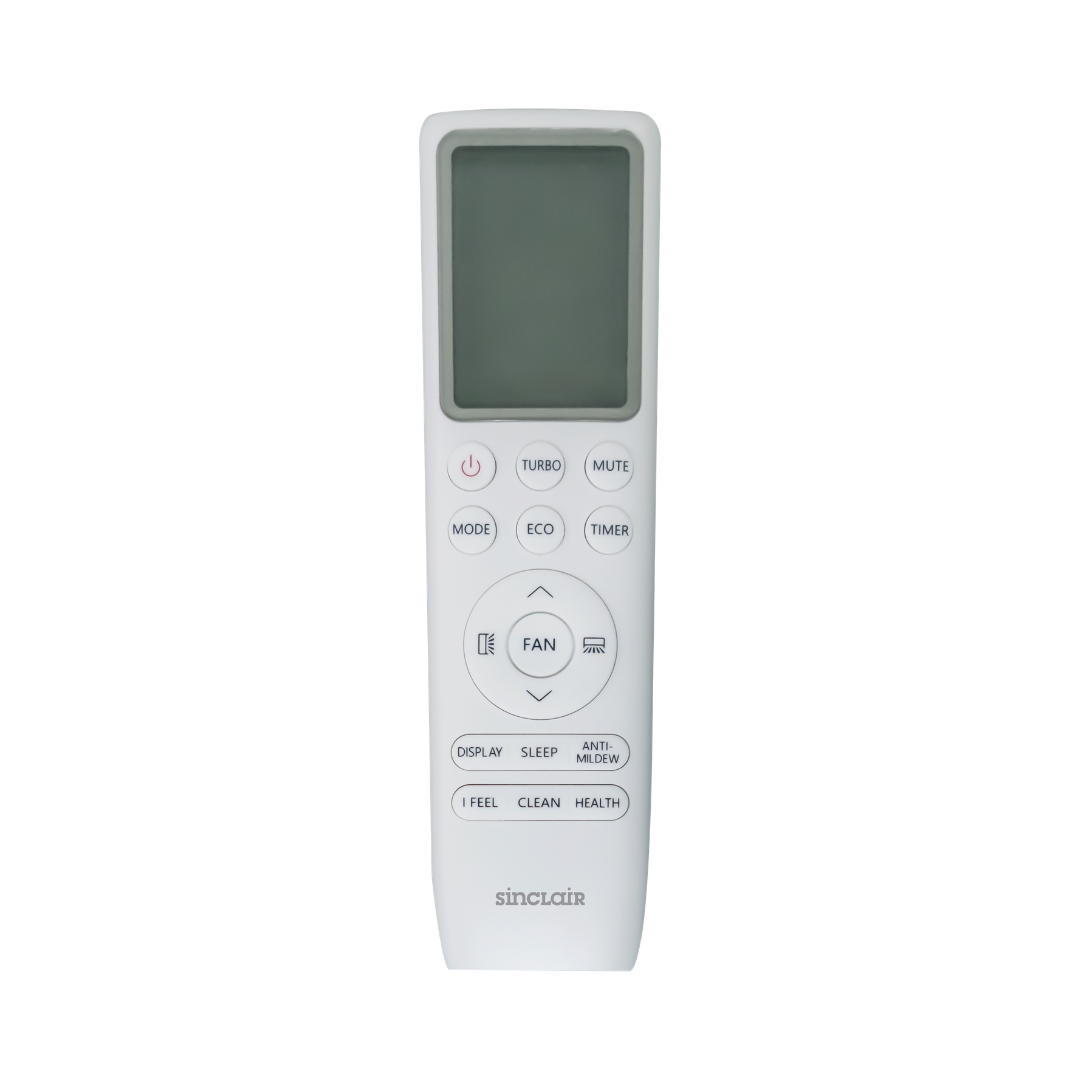

Product Group : Hi-Wall - Sinclair Remote Control : Yes
Remote Control Provided : Yes
Additional Info
Indoor/ Outdoor/ Other : Indoor Single Split / Multi Split : Single Split
Connections
Pipe Diameter Gas Side : 1/2 in Pipe Diameter Liquid Side : 1/4 in
Connectivity
Pre-Equipped Wifi : Yes
Cooling Capacity
Cooling Capacity : 8.2 kW Cooling Capacity (Min/Max) : 1.5/8.5 kW
Cooling Capacity (Min/Rated/Max) : 1.5 - 8.2 - 8.5 kW
Electrical
Current (Cooling) : 10.7 A Current (Heating) : 10.3 A
Frequency : 50 Hz Input (Cooling) : 3100 kW
Input (Heating) : 3150 kW Max Current : 14.0 A
Phase : 1 ph Power Supply : 220-240/1/50 V/Ph/Hz
Energy Efficiency/Performance
COP : 3.6 EER : 3.41
Energy Label (Cooling) : 3.5 / 3.0 / 3.5 Hot / Mixed / Cold Energy Label (Heating) : 3.5 / 2.5 / 2.0 Hot / Mixed / Cold
Heating Capacity
Heating Capacity : 8.4 kW Heating Capacity (Min/Rated/Max) : 1.5 - 8.4 - 8.5 kW
Indoor Unit Attributes
Depth (IU) : 332 mm Height (IU) : 222 mm
Net Weight (IU) : 14 kg Width (IU) : 1097 mm
Measurements
Depth : 222 mm Height : 332 mm
Width : 1097 mm
Pipes
Max Height Difference : 15 m Max Pipe Length Without Additional Refrigerant : 20 m
Refrigerant
Refrigerant : R32 Refrigerant Charge : 1.27 kg
Refrigerant Pipe Size : 1/4 - 1/2 in
Sound Power/Pressure
Sound Power Level : 65 dB(A) Sound Pressure Level (Low/Medium/High/Quiet) : 65 dB(A)
Temperature
Outdoor Operating Temp. Range (Cooling) : 15 to 50 °C Outdoor Operating Temp. Range (Heating) : -15 to 24 °C
