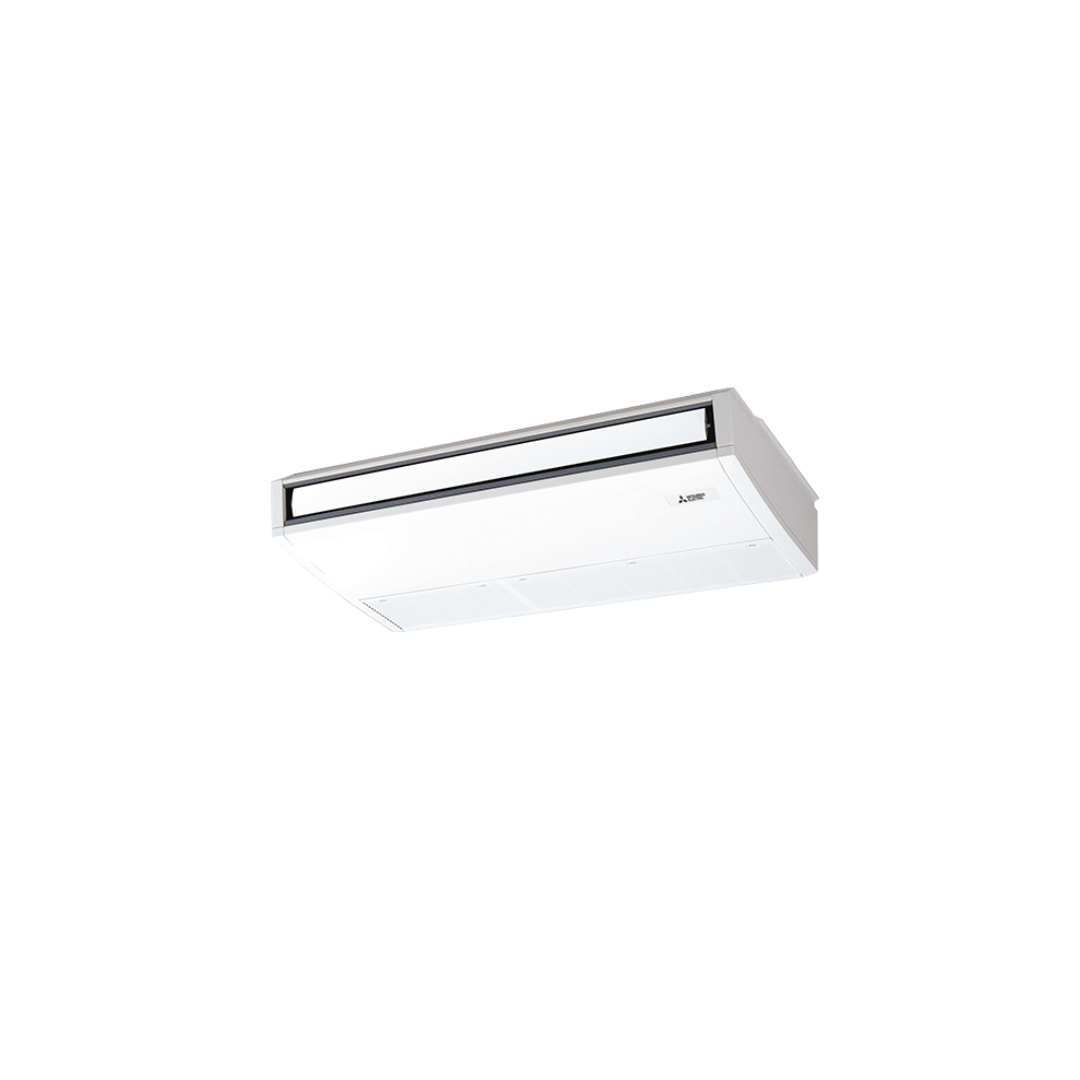

Mitsubishi Electric Mr Slim Ceiling PCA-M Suspended R32 10kW ID 3/8 x 5/8

Product number: PCA-M100KA

Mitsubishi Electric

Mitsubishi Electric Mr Slim Ceiling PCA-M Suspended R32 10kW ID 3/8 x 5/8
Product Group : Ducted Systems - Mitsubishi Electric
Description

The Mitsubishi Electric Mr Slim PCA-M Series Under Ceiling Unit offers a stylish design and versatile airflow settings, making it perfect for both high and low ceiling spaces. With energy-saving control options, it provides efficient and adaptable climate control to meet a wide range of air conditioning needs. Ideal for both residential and commercial environments, it ensures comfort while maximizing energy efficiency.

• Specifications may differ depending on the application. Please refer to the manufacturer's brochures for details.•

General Information
Condensate Water Pump Provided : No Model Number : PCA-M KA-podstropna
Product Group : Ducted Systems - Mitsubishi Electric
Additional Info
Indoor/ Outdoor/ Other : Indoor
Air Volume/Air Flow
Air Flow Cooling (IU) : 22-24-26-28 m³/min Air Flow Heating (IU) : 22-24-26-28 m³/min
Capacity
Nominal Cooling Capacity : 9.5 kW Nominal Heating Capacity : 11.2 kW
Connectivity
Pre-Equipped Wifi : Optional
Cooling Capacity
Cooling Capacity : 10.00 kW Cooling Capacity (Min/Rated/Max) : 4.00 - 10.00 - 10.60 kW
Electrical
Max Current : 20.70 A Power Supply : 230/1/50 V/Ph/Hz
Energy Efficiency/Performance
COP : 3.31 EER : 3.36
Heating Capacity
Heating Capacity : 11.20 kW Heating Capacity (Min/Rated/Max) : 2.80 - 11.20 - 12.50 kW
Indoor Unit Attributes
Depth (IU) : 680 mm Height (IU) : 230 mm
Indoor Model Number : PCA-M100KA2 Net Weight (IU) : 37 kg
Sound Power Level Cooling (IU) : 63 dB(A) Sound Power Level Heating (IU) : 63 dB(A)
Sound Pressure Level Cooling (IU) (Low/Medium/High) : 37-39-41-43 dB(A) Sound Pressure Level Heating (IU) (Low/Medium/High) : 37-39-41-43 dB(A)
Width (IU) : 1600 mm
Measurements
Depth : 680 mm Height : 230 mm
Net Weight : 37.0 kg Width : 1600 mm
Pipes
Refrigerant Pipe Size Gas : 15.88 mm Refrigerant Pipe Size Liquid : 9.52 mm
Refrigerant
Refrigerant : R32 Refrigerant Pipe Size : 3/8 - 5/8 in
File name Document Type Extension Size
user-manual-pca-m-ka-om-rg79f397h01-2019-ast-3271915.pdf User Manual pdf 1.53 MB
mr-slim-air-conditioning-systems-brochure-2023-ast-3272213.pdf Brochures pdf 8.31 MB
installation-manual-pca-m-ka-im-rg79f398h01-2019-ast-3271881.pdf Installation Manual Indoor Unit pdf 771.93 KB
