Mitsubishi Electric Mr Slim Bulkhead SEZ-M Ducted R32 7.1kW ID 3/8 x 5/8

Product number: SEZ-M71DA.TH

Mitsubishi Electric

PLEASE LOGIN TO SEE PRICES

Further products

Product Group :	Bulkhead Systems - Mitsubishi Electric

Description

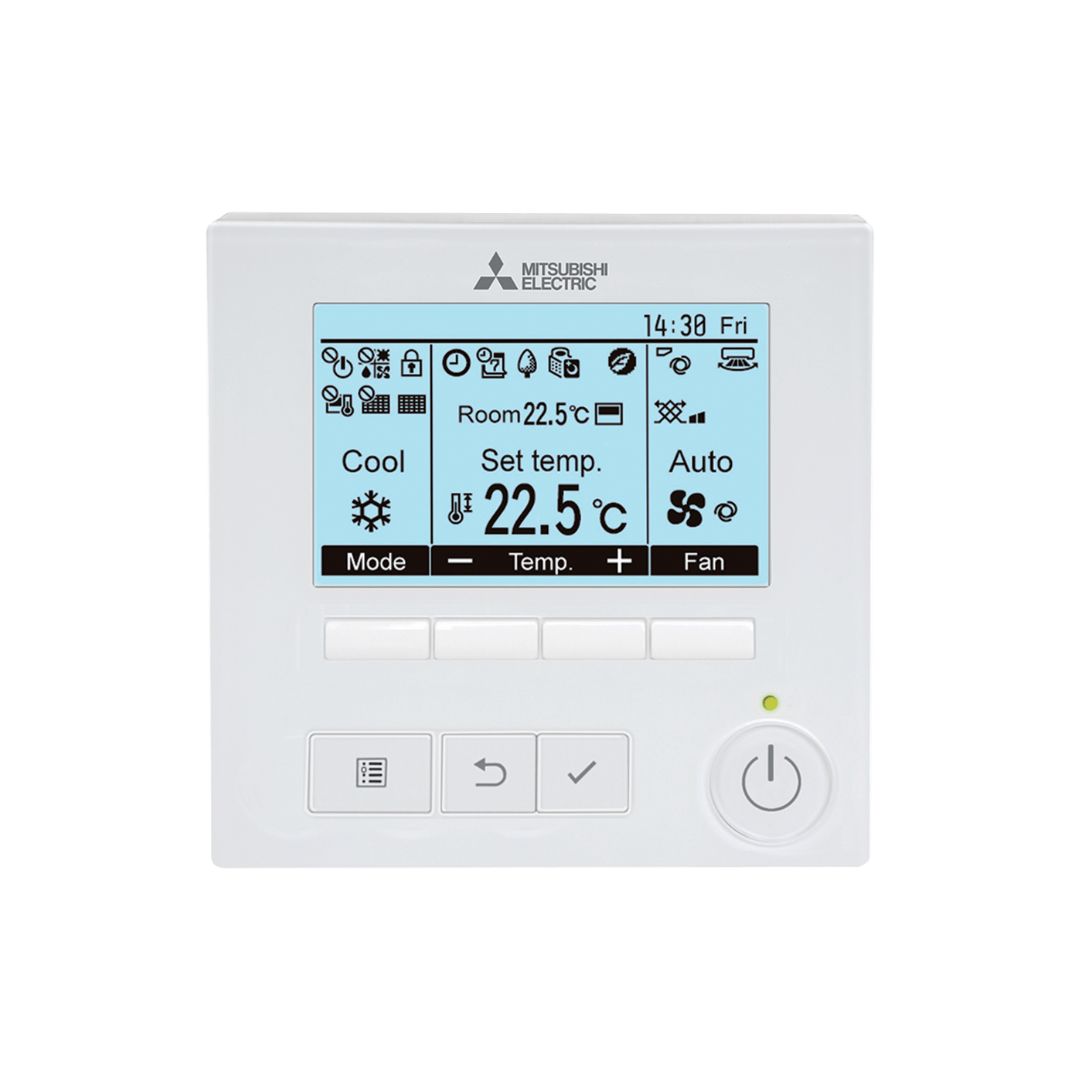

The Mitsubishi Electric Mr Slim SEZ-M Series Bulkhead Air Conditioner combines quiet efficiency with a sleek design, offering optimal climate control for your home or office. With its low static, low-profile build and a height of just 200mm, it's perfect for spaces with lower ceilings and discreet installation. The visible air intake and outlet grilles maintain clean, modern lines, seamlessly blending with your décor. The unit comes with a wired wall controller

• Specifications may differ depending on the application. Please refer to the manufacturer's brochures for details.•

General Information

Condensate Water Pump Provided :	No	Model Number :	Kanalska izvedba, DC inverter serija
Product Group :	Bulkhead Systems - Mitsubishi Electric

Additional Info

Indoor/ Outdoor/ Other :	Indoor

Air Volume/Air Flow

Air Flow Cooling (IU) :	12 - 16 - 20 m³/min	Air Flow Heating (IU) :	12 - 16 - 20 m³/min

Capacity

Nominal Cooling Capacity :	7,1 kW	Nominal Heating Capacity :	8 kW

Connectivity

Pre-Equipped Wifi :	Optional

Cooling Capacity

Cooling Capacity :	7.10 kW	Cooling Capacity (Min/Rated/Max) :	2.80 - 7.10 - 8.30 kW

Electrical

Max Current :	15.70 A	Power Supply :	230/1/50 V/Ph/Hz

Energy Efficiency/Performance

COP :	3.6	EER :	3.31

Heating Capacity

Heating Capacity :	8.00 kW	Heating Capacity (Min/Rated/Max) :	2.60 - 8.00 - 10.40 kW

Indoor Unit Attributes

Depth (IU) :	700 mm	Height (IU) :	200 mm
Indoor Model Number :	SEZ-M71DATH	Net Weight (IU) :	25,5 kg
Sound Power Level Cooling (IU) :	60 dB(A)	Sound Power Level Heating (IU) :	60 dB(A)
Sound Pressure Level Cooling (IU) (Low/Medium/High) :	30 - 35 - 40 dB(A)	Sound Pressure Level Heating (IU) (Low/Medium/High) :	30 - 35 - 40 dB(A)
Width (IU) :	1190 mm

Measurements

Depth :	700 mm	Height :	200 mm
Net Weight :	25.5 kg	Width :	1190 mm

Pipes

Max Height Difference :	30 m	Refrigerant Pipe Size Gas :	15,88 mm
Refrigerant Pipe Size Liquid :	9,52 mm

Refrigerant

Refrigerant :	R32	Refrigerant Pipe Size :	3/8 - 5/8 in

File name	Document Type	Extension	Size
user-manual-sez-m25-71da-om-vz79d585h02-2017-ast-3271913.pdf	User Manual	pdf	3.73 MB
mr-slim-air-conditioning-systems-brochure-2023-ast-3272213.pdf	Brochures	pdf	8.31 MB
installation-manual-sez-m25-71dal-im-vz79d586h02-2018-ast-3271885.pdf	Installation Manual Indoor Unit	pdf	5.75 MB
