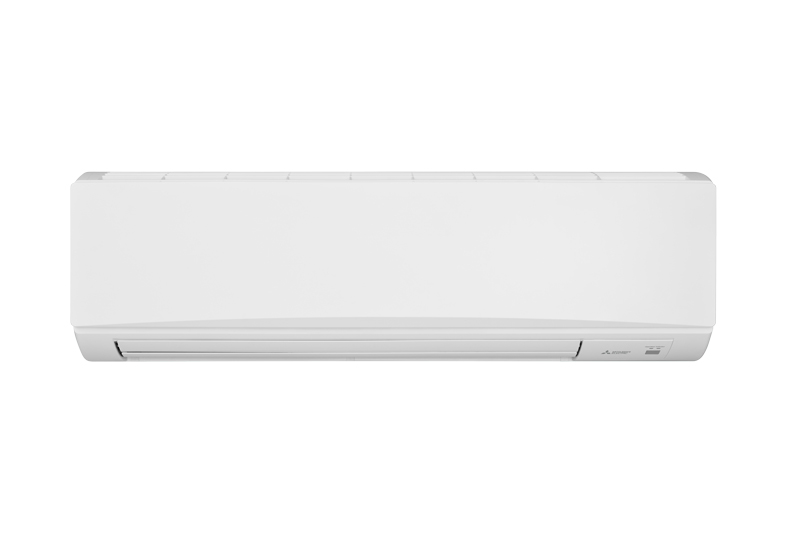

Product number: MSZ-AS90VGD-A1
Mitsubishi Electric
| Product Group : | Hi-Wall - Mitsubishi Electric |
|---|---|
| Cooling Capacity : | 9.0 kW |
| EER : | 3.24 |
| Heating Capacity : | 10.3 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Pre Equiped Wifi : | Optional |
| Refrigerant : | R32 |
| Product Group : | Hi-Wall - Mitsubishi Electric | Condensate Water Pump Provided : | No |
|---|---|---|---|
| Pre Equiped Wifi : | Optional | Remote Control : | Yes |
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
| Cooling Capacity : | 9.0 kW | Cooling Capacity (Min/Rated/Max) : | 2.0 - 9.0 - 10.3 kW |
|---|---|---|---|
| Heating Capacity : | 10.3 kW | Heating Capacity (Min/Rated/Max) : | 2.2 - 10.3 - 11.5 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|
| COP : | 3.5 | EER : | 3.24 |
|---|
| Depth : | 295 mm | Height : | 365 mm |
|---|---|---|---|
| Net Weight : | 20 kg | Width : | 1170 mm |
| Refrigerant : | R32 | Refrigerant Pipe Size : | 1/4 - 1/2 in |
|---|
| Wire Diameter Interconnection Cable : | 3C + E |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| Mits-Electric-MSZ-AS-Split-Systems-Brochure-2022-EN.pdf | Brochures | 6.67 MB |
