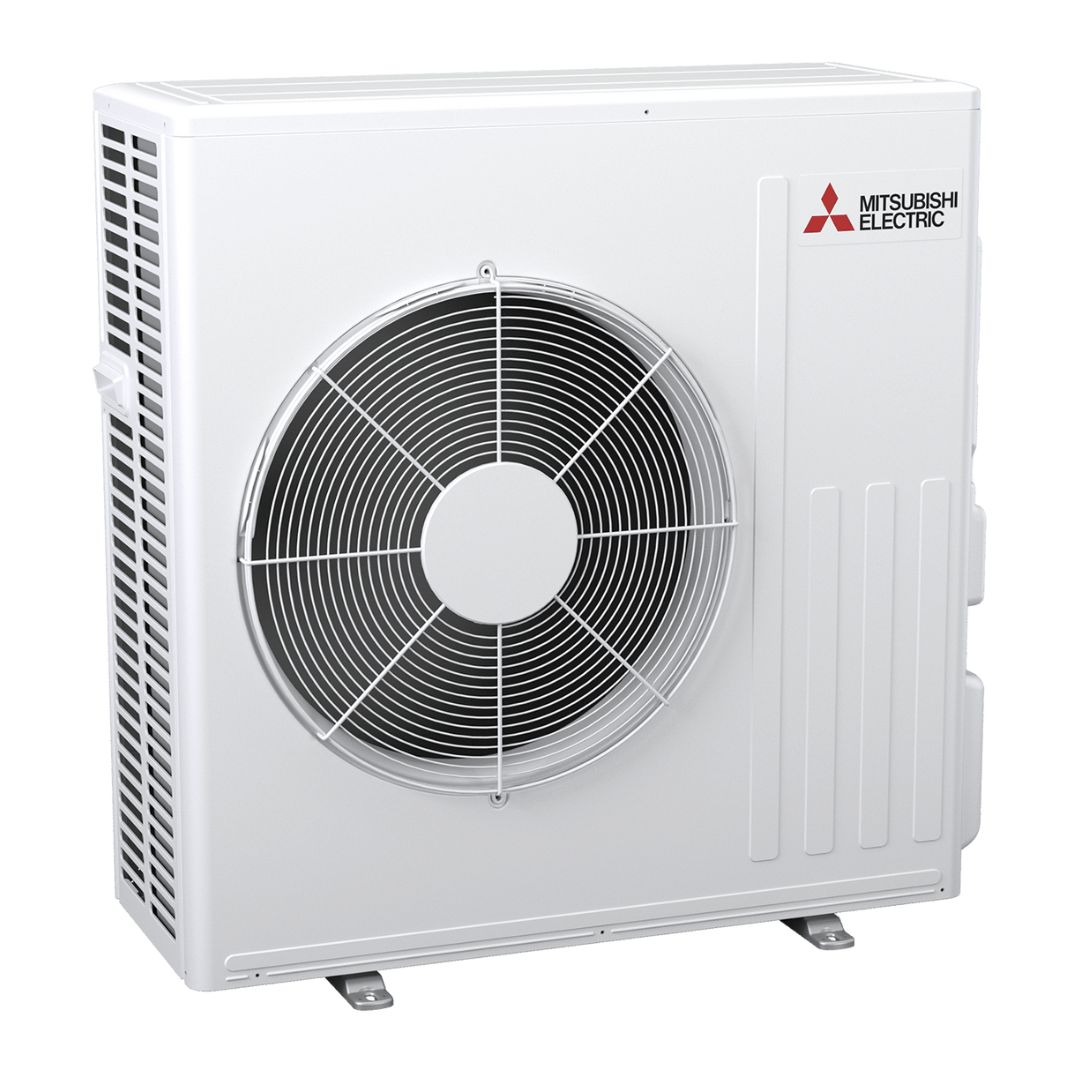

Product number: MUFZ-KW60VG-A1
Mitsubishi Electric
| Cooling Capacity : | 6.10 kW |
|---|---|
| EER : | 3.52 |
| Heating Capacity : | 6.50 kW |
| Product Group : | Hi-Wall - Mitsubishi Electric |
| Refrigerant : | R32 |
| Product Group : | Hi-Wall - Mitsubishi Electric |
|---|
| Cooling Capacity : | 6.10 kW |
|---|
| Max Current : | 15.4 A | Recommended Fuse : | 20 Amp |
|---|
| COP : | 3.45 | EER : | 3.52 |
|---|
| Number Of Fans : | 1 |
|---|
| Heating Capacity : | 6.50 kW |
|---|
| Depth : | 330 mm | Height : | 880 mm |
|---|---|---|---|
| Weight : | 54.0 kg | Width : | 840 mm |
| Max Height Difference : | 15 m | Max Piping Length : | 30 m |
|---|
| Refrigerant : | R32 | Refrigerant Pipe Size : | 1/4 - 1/2 in |
|---|
| Temperature Range Cooling : | -10 - 46 °C | Temperature Range Heating : | -15 - 24 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| split-system-brochure-2023-ast-3272244.pdf | Brochures | 4.51 MB | |
| installation-manual-mfz-kw25-60vg-im-rh79a056h01-2020-ast-3271879.pdf | Installation Manual Indoor Unit | 1.05 MB |
