Maneurop Reciprocating Compressor MT28-4VI

Product number: MTZ28-4VI

Danfoss

Product Group : Comp Herm - Maneurop
Refrigerant : R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A
Voltage : 380-400/3/50 V/Ph/Hz
Description
MTZ028-4
General Information
Product Group : Comp Herm - Maneurop Application : H/MBP/AC
Colour : Blue Cooling Type : Suction
Model Number : MTZ28JE4AVE Number Of Cylinders : 1
Type : MTZ
Additional Info
Family : MTZ
Capacity
Capacity Control : No
Capacity HBP
Capacity HBP -5°C R448A : 4561 W
Compressor
Power Supply Compressor : 400/3/50 460/3/60 V/Ph/Hz Swept Volume : 48.06 cm³
Technique : Hubkolben
Connections
Connection Type : Valve/Rotolock Discharge Connection Height : 68 mm
Discharge Connection Pipe Size : 3/8 in Discharge Connection Size : 1 in
Discharge Line Connection : 1"-14UNF/3/8" Suction Connection Height : 263 mm
Suction Connection Pipe Size : 1/2 in Suction Connection Size : 1"-14UNF/1/2" in
Electrical
Frequency : 50/60 Hz IP Class : IP55
LRA : 29 A MCC : 7.5 A
Power Supply : 440/3/50-60 V/Ph/Hz RLA : 5.4 A
Voltage : 380-400/3/50 V/Ph/Hz
Logistical Information
Commodity Code : 84143081 Country Of Origin : FRA
EAN : 5702428980548 Gross Weight : 24.88 kg
HS Code : MTZ28-4VI

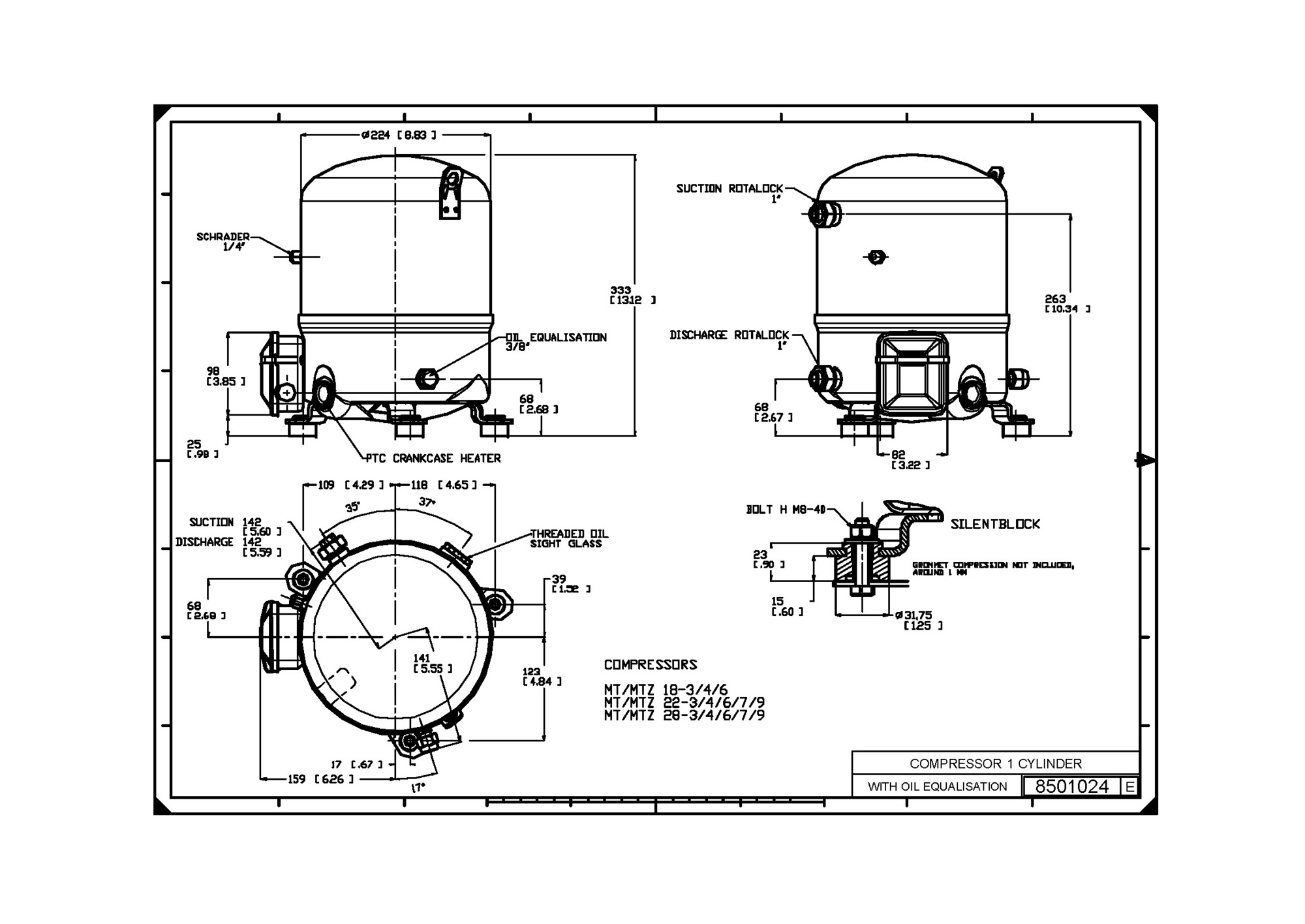

Measurements
Diameter : 224 mm Height : 333 mm
Length : 225 mm Weight : 23 kg
Width : 225 mm
Motor
Motor Protector : Internal Motor Type : DOL
Nominal Capacity R404A
R404A Nominal Capacity -5°C : 2880 W
Oil
Oil Charge : 950 cm³ Oil Equalization : 3/8'' flare SAE
Oil Type : 175PZ
Performance
Nominal HP : 2.1/3
Refrigerant
Max Refrigerant Charge : 2.50 kg Refrigerant : R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A
Valves
Expansion Device : V
