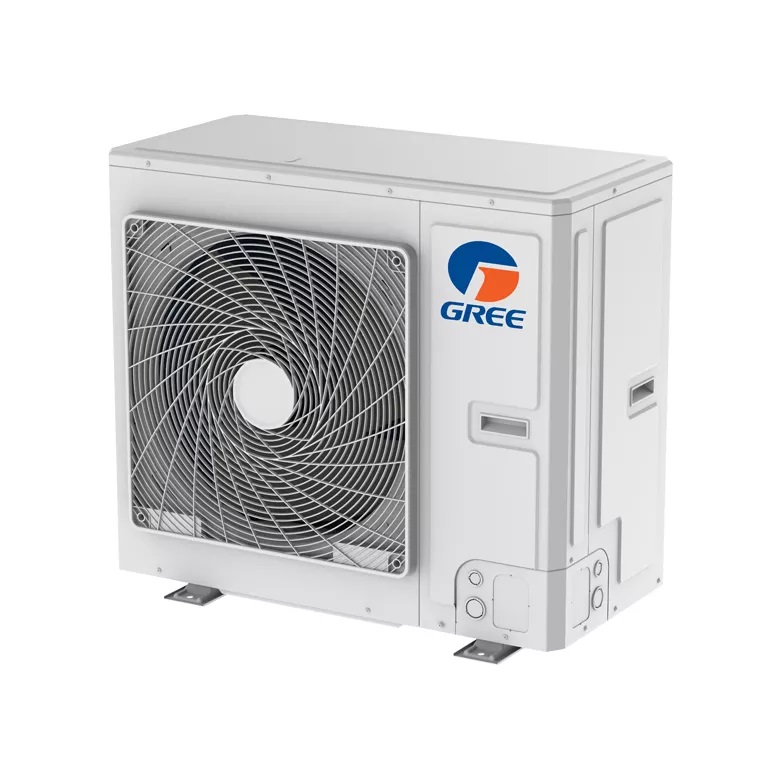

Gree U-Match VI Ducted Outdoor - 7.1kW

Product number: GUD71W1/NhC-S

Gree

Product Group : Ducted Systems - Gree
Description

Gree Ducted Air Conditioning Systems offer discreet heating and cooling for your home or work place and is tailored to fit perfectly into your environment. By adding zone control, it offers a higher level of control compared to traditional air conditioning units, which means a greater level of comfort and increased energy efficiency.

Unlike hi-wall air conditioners, the Gree Ducted System is integrated into your home, office or floor space, this means’ you will only seethe grilles in the ceiling and controller on the wall, no bulky units taking up wall space. There are a wide range of grilles available to match in with your interior design and they can be positioned to suit the room size and shape to ensure even air distribution for maximum comfort with minimal noise. Gree Ducted Air Conditioning Systems can be installed into new builds or can be retro fitted into your existing home or office.

Indoor units on the Gree Ducted Air Conditioning System all come with adjustable static pressure that can be adjusted on the controller during commissioning to ensure the best air flow and maximum comfort. There are 9 steps ranging from 10 to 200pa.

Key Features

  • G10 Inverter
  • Low noise
  • Fast heating and cooling
  • Intelligent Defrosting
  • Anti-corrosion outdoor unit
  • XE71-42/G Wired Wall Controller
  • Wifi compatible (optional)
General Information
Product Group : Ducted Systems - Gree
Cooling Capacity
Cooling Capacity : 7.1 kW
Electrical
Power Consumption Cooling : 1.97 kW Power Consumption Heating : 2 kW
Power Supply : 220-240/1/50 V/Ph/Hz Recommended Fuse : 20 A
Energy Efficiency/Performance
COP : 3.98 EER : 3.69
Fan
Number Of Fans : 1
Heating Capacity
Heating Capacity : 8 kW
Measurements
Depth : 340 mm Height : 660 mm
Weight : 42 kg Width : 889 mm
Pipes
Max Height Difference : 20 m Max Piping Length : 30 m
Refrigerant
Refrigerant : R32 Refrigerant Charge : 1.4 kg
Refrigerant Pipe Size : 3/8 - 5/8 in
Temperature
Temperature Range Cooling : - 5 - 52 °C Temperature Range Heating : -15 - 24 °C
File name Document Type Extension Size
gree-splitable-ducted-brochure-2024-au-ast-2914384.pdf Brochures pdf 5.44 MB
