Description

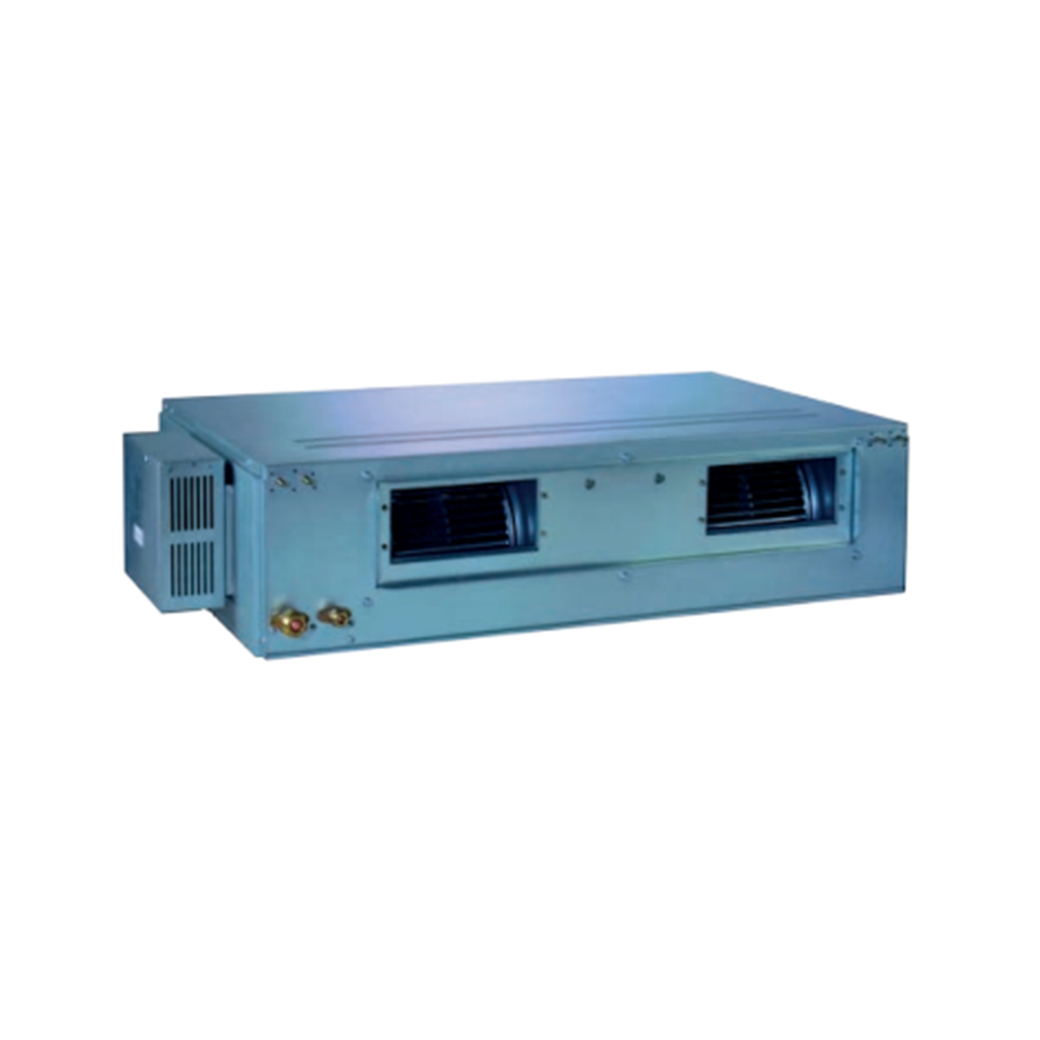

Gree U-Match 5kW Indoor Ducted R32 1/4 x 1/2
Product number: GUD50PS/B-S
Gree
| Product Group : | Ducted Systems - Gree |
|---|---|
| Cooling Capacity : | 5.3 kW |
| Heating Capacity : | 5.8 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Pre-Equipped Wifi : | Yes |
| Refrigerant : | R32 |
| Voltage : | 230 V |
General Information
| Product Group : | Ducted Systems - Gree | Condensate Water Pump Provided : | Yes |
|---|---|---|---|
| Drain Pump Height : | 1000 mm | Pre-Equipped Wifi : | Yes |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
Air Volume/Air Flow
| Air Flow : | 1102 m³/h |
|---|
Capacity
| Cooling Capacity : | 5.3 kW | Cooling Capacity (Min/Rated/Max) : | 2.0/5.3/6.0 kW |
|---|---|---|---|
| Heating Capacity : | 5.8 kW | Heating Capacity (Min/Rated/Max) : | 2.0/5.3/6.9 kW |
Connections
| Drain Connection Size : | 20 mm | Liquid Line Connection : | 6.35 mm |
|---|---|---|---|
| Pipe Diameter Gas Side : | 12.50 mm | Pipe Diameter Liquid Side : | 6.35 mm |
Electrical
| Power Consumption Cooling : | 1.32 kW | Power Consumption Heating : | 1.41 kW |
|---|---|---|---|
| Power Supply : | 230/1/50 V/Ph/Hz | Recommended Fuse : | 16 |
| Voltage : | 230 V | Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| R32 SCOP : | 4.06 | R32 SEER : | 3.99 |
|---|
Heating Capacity R32
| R32 Heating Capacity Max : | 6.9 kW | R32 Heating Capacity Min : | 2.0 kW |
|---|---|---|---|
| R32 Heating Capacity Rated : | 5.3 kW |
Indoor Unit Attributes
| Net Weight (IU) : | 26 kg |
|---|
Measurements
| Depth : | 450 mm | Height : | 200 mm |
|---|---|---|---|
| Net Weight : | 26 kg | Weight : | 26 kg |
| Width : | 1000 mm |
Pipes
| Max Height Difference : | 20 m | Max Piping Length : | 35 m |
|---|---|---|---|
| Pipe Dimension : | 6.35 x 12.50 mm |
Power Input R32
| R32 Power Input Rated Cooling : | 1.32 kW | R32 Power Input Rated Heating : | 1.41 kW |
|---|
Pressure
| External Static Pressure : | 25 Pa |
|---|
Refrigerant
| Refrigerant : | R32 | Refrigerant Charge : | 1.32 kg |
|---|---|---|---|
| Refrigerant Pipe Size : | 6.35x12.50 mm |
Sound Power/Pressure
| Sound Power Level : | 61 dB(A) | Sound Pressure Level : | 37 dB(A) |
|---|---|---|---|
| Sound Pressure Level (Low/Medium/High/Quiet) : | 37/38/40 dB(A) |
