Description

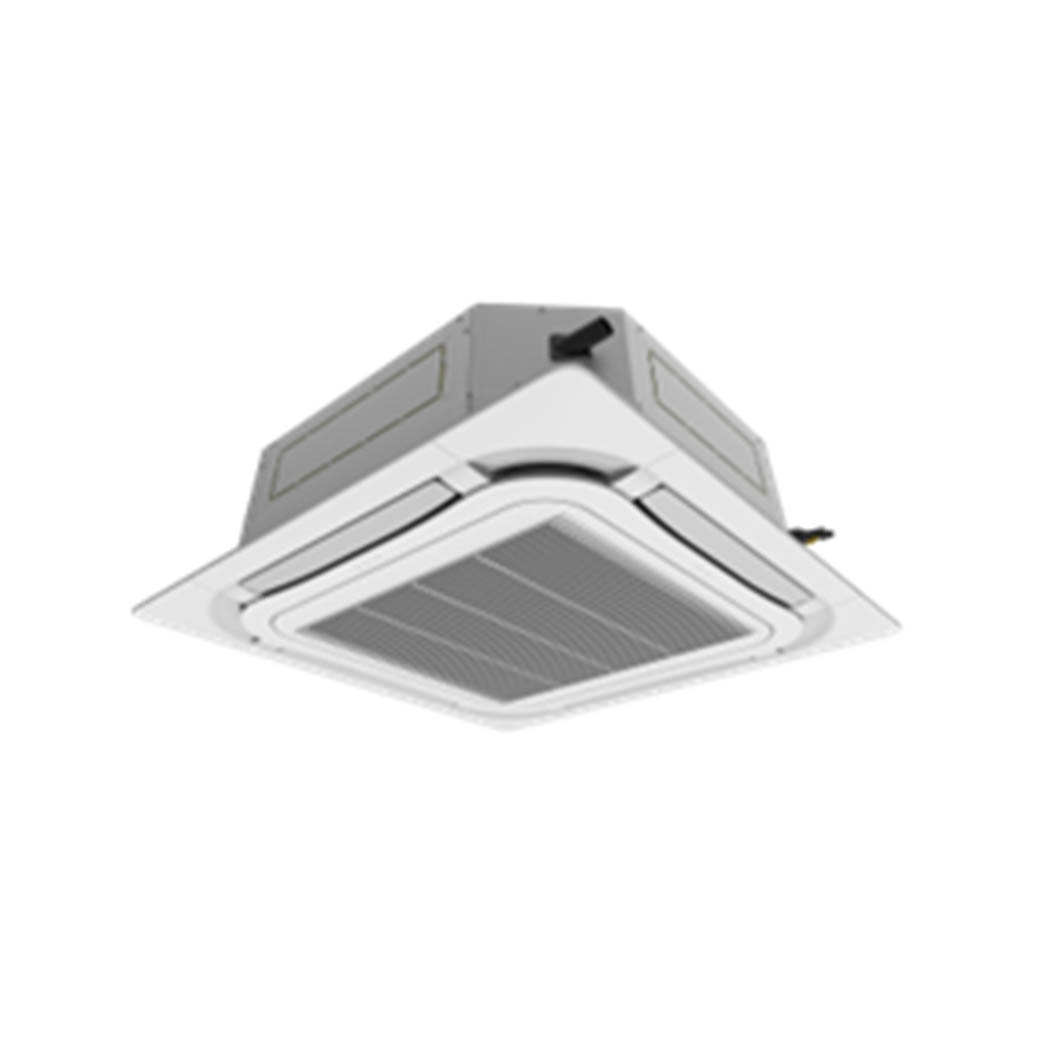

Gree U-Match 14kW Indoor Cassette R32 3/8 x 5/8
Product number: GUD140T/B-S
Gree
| Product Group : | Cassette Units - Gree |
|---|---|
| Cooling Capacity : | 13.6 kW |
| Heating Capacity : | 16.0 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Refrigerant : | R32 |
General Information
| Product Group : | Cassette Units - Gree | Condensate Water Pump Provided : | Yes |
|---|---|---|---|
| Drain Pump Height : | 1000 mm | Pre-Equipped Wifi : | Yes |
| Remote Control : | Yes | Remote Control Provided : | Yes |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
Air Volume/Air Flow
| Air Flow : | 2099 m³/h |
|---|
Capacity
| Cooling Capacity : | 13.6 kW | Heating Capacity : | 16.0 kW |
|---|
Connections
| Drain Connection Size : | 25 mm | Liquid Line Connection : | 9.52 mm |
|---|---|---|---|
| Pipe Diameter Gas Side : | 15.88 mm | Pipe Diameter Liquid Side : | 9.52 mm |
Cooling Capacity R32
| R32 Cooling Capacity Max : | 16 kW | R32 Cooling Capacity Min : | 6.8 kW |
|---|---|---|---|
| R32 Cooling Capacity Rated : | 13.6 kW |
Electrical
| Power Consumption Cooling : | 4.25 kW | Power Consumption Heating : | 4.92 kW |
|---|---|---|---|
| Power Supply : | 230/1/50 V/Ph/Hz | Recommended Fuse : | 40 |
Energy Efficiency/Performance
| R32 SCOP : | 3.29 | R32 SEER : | 3.19 |
|---|
Heating Capacity R32
| R32 Heating Capacity Max : | 17.0 kW | R32 Heating Capacity Min : | 4.5 kW |
|---|---|---|---|
| R32 Heating Capacity Rated : | 16.0 kW |
Indoor Unit Attributes
| Net Weight (IU) : | 36 kg |
|---|
Measurements
| Depth : | 840 mm | Height : | 290 mm |
|---|---|---|---|
| Net Weight : | 36 kg | Weight : | 36 kg |
| Width : | 840 mm |
Pipes
| Max Height Difference : | 30 m | Max Pipe Length Without Additional Refrigerant : | 20 m |
|---|---|---|---|
| Max Piping Length : | 75 m |
Power Input R32
| R32 Power Input Rated Cooling : | 4.25 kW | R32 Power Input Rated Heating : | 4.92 kW |
|---|
Refrigerant
| Refrigerant : | R32 | Refrigerant Charge : | 4.1 kg |
|---|---|---|---|
| Refrigerant Pipe Size : | 9.52x15.88 mm |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 42/46/49/51 dB(A) |
|---|
