Description
Incorporating pure and elegant design, superior technology and efficient performance, the latest Gree Pular Air Conditioner is set to be the preferred choice for your living spaces.

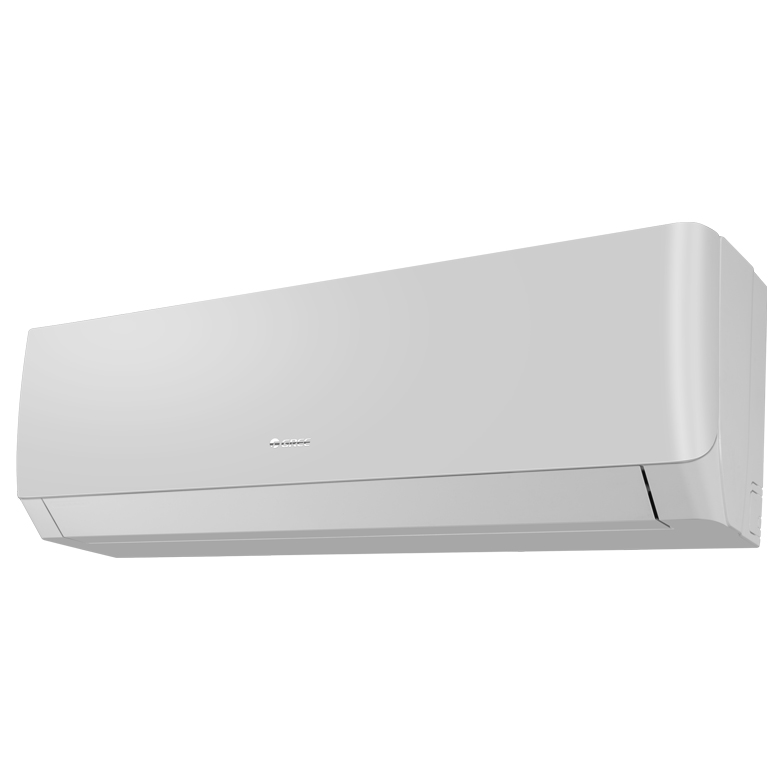

Gree Pular 3.5kW Inverter Indoor WiFi R32 1/4 x 3/8
Product number: GWH12AGCXD-K6DNA1A/I
Gree
| Cooling Capacity : | 3.52 kW |
|---|---|
| EER : | 4.2 |
| Heating Capacity : | 4.00 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Pre-Equipped Wifi : | Yes |
| Product Group : | Hi-wall - Gree Lomo |
| Refrigerant : | R32 |
| Voltage : | 230 V |
General Information
| Condensate Water Pump Provided : | No | Moisture Removal Volume : | 1.4 L/ph |
|---|---|---|---|
| Product Group : | Hi-wall - Gree Lomo | Remote Control : | YAG1FB4 |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
Air Volume/Air Flow
| Air Flow : | 720 m³/h | Air Volume : | 200 m³/h |
|---|
Capacity
| Cooling Capacity : | 3.52 kW | Cooling Capacity (Min/Rated/Max) : | 0.55/3.52/4.40 kW |
|---|---|---|---|
| Heating Capacity : | 4.00 kW | Heating Capacity (Min/Rated/Max) : | 1.10/4.00/5.40 kW |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity R32
| R32 Cooling Capacity Max : | 4.40 kW | R32 Cooling Capacity Min : | 0.55 kW |
|---|---|---|---|
| R32 Cooling Capacity Rated : | 3.52 kW |
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz | Recommended Fuse : | 10 |
|---|---|---|---|
| Voltage : | 230 V | Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| COP : | 4.05 | EER : | 4.2 |
|---|---|---|---|
| R32 SCOP : | 4.05 | R32 SEER : | 4.2 |
Heating Capacity R32
| R32 Heating Capacity Max : | 5.4 kW | R32 Heating Capacity Min : | 1.1 kW |
|---|---|---|---|
| R32 Heating Capacity Rated : | 4.0 kW |
Indoor Unit Attributes
| Net Weight (IU) : | 9.5 kg |
|---|
Measurements
| Depth : | 196 mm | Height : | 293 mm |
|---|---|---|---|
| Net Weight : | 9.5 kg | Weight : | 9.5 kg |
| Width : | 825 mm |
Pipes
| Max Pipe Length Without Additional Refrigerant : | 10 m | Max Piping Length : | 20 m |
|---|---|---|---|
| Pipe Dimension : | 6.35 x 9.50 mm |
Power Input R32
| R32 Power Input Rated Cooling : | 0.83 kW | R32 Power Input Rated Heating : | 0.98 kW |
|---|
Refrigerant
| Refrigerant : | R32 | Refrigerant Charge : | 0.8 kg |
|---|---|---|---|
| Refrigerant Pipe Size : | 1/4-3/8 in |
Sound Power/Pressure
| Sound Power Level : | 39 dB(A) | Sound Pressure Level : | 24 dB(A) |
|---|---|---|---|
| Sound Pressure Level (Low/Medium/High/Quiet) : | 24 / - / 44 dB(A) |
Wire
| Wire Diameter Interconnection Cable : | 3C + E |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| gree-pular-brochure-8pp-2023-au-ast-1569361.pdf | Brochures | 6.43 MB |
