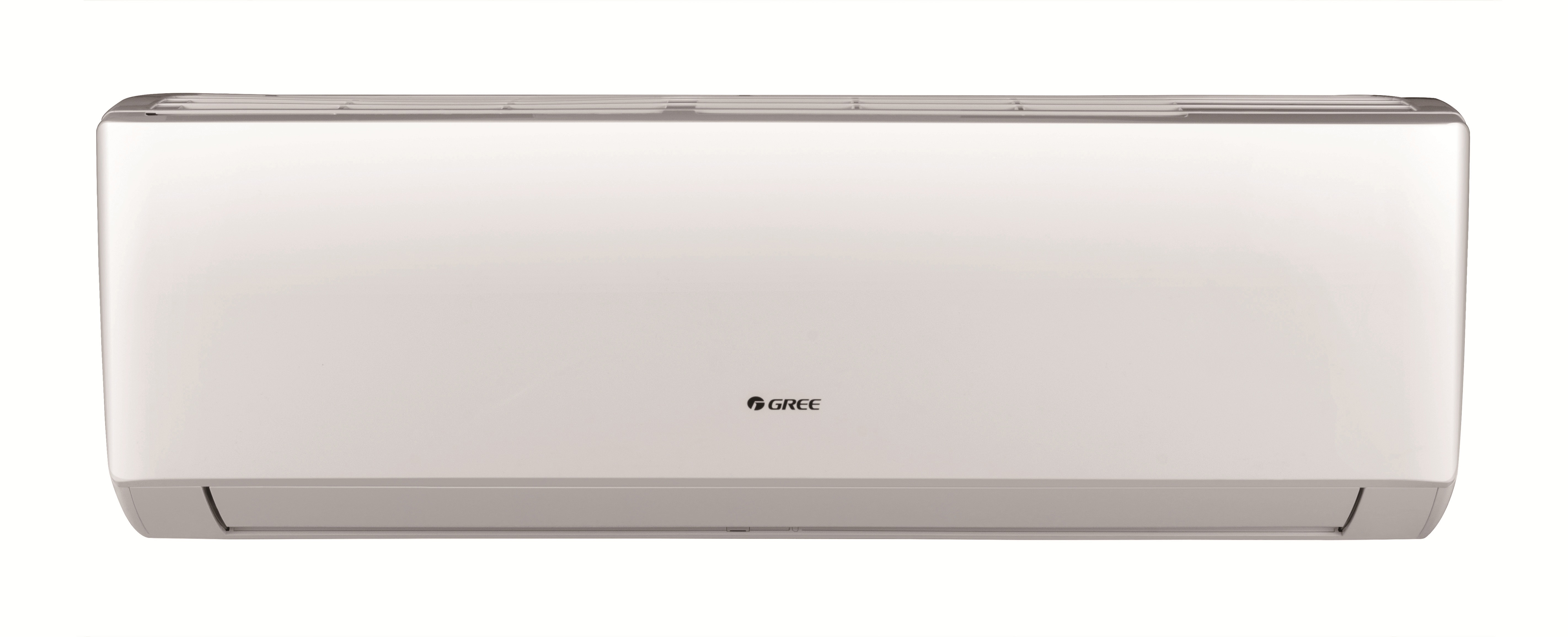

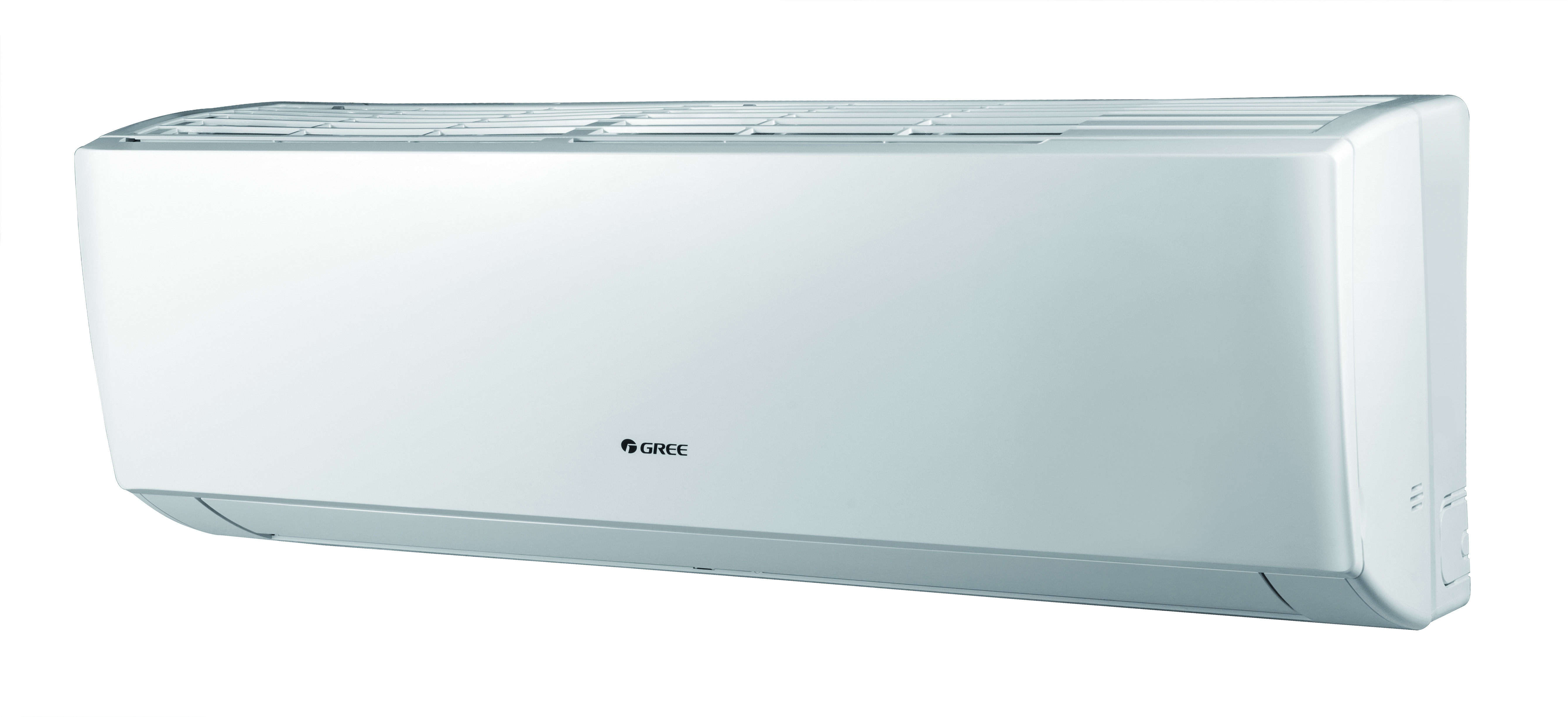

Gree Lomo 3.5kW Multi High Wall Indoor R410a

Product number: GWH12QC-K3DNB2D/I

Gree

Product Group : Hi-wall - Gree Lomo / Pular
Cooling Capacity : 3.4 kW
EER : 3.84
Heating Capacity : 4 kW
Indoor/ Outdoor/ Other : Indoor
Pre Equiped Wifi : Optional
Refrigerant : R410A
Voltage : 230 V
Description
General Information
Product Group : Hi-wall - Gree Lomo / Pular Condensate Water Pump Provided : No
Model Number : AC7313/I Moisture Removal Volume : 1.4 L/ph
Pre Equiped Wifi : Optional Remote Control : YAG1FB4 / XK76
Additional Info
Indoor/ Outdoor/ Other : Indoor Single Split / Multi Split : Single Split
Air Volume/Air Flow
Air Flow (Low/Medium/High) : 108 / 136 / 188 m³/h Air Volume : 189 m³/h
Capacity
Cooling Capacity : 3.4 kW Cooling Capacity (Min/Rated/Max) : 0.5/3.4/4.0 kW
Heating Capacity : 4 kW Heating Capacity (Min/Rated/Max) : 0.8/4.0/4.8 kW
Electrical
Max Current : 6.5 A Power Supply : 220-240/1/50 V/Ph/Hz
Voltage : 230 V
Energy Efficiency/Performance
COP : 3.85 EER : 3.84
Measurements
Depth : 209 mm Height : 289 mm
Net Weight : 10.5 kg Width : 845 mm
Pipes
Pipe Dimension : 1/4 in, 3/8 in, 6.35 mm, 9.52 mm
Refrigerant
Refrigerant : R410A Refrigerant Pipe Size : 1/4-3/8 in, 6.35-9.52 mm
Sound Power/Pressure
Sound Pressure Level (Low/Medium/High/Quiet) : 26 / 37 / 46 dB(A)
Wire
Wire Diameter Interconnection Cable : 3C + E
File name Document Type Extension Size
Gree-3phase-Ducted-Brochure-EN.pdf Brochures pdf 1.94 MB
