Description

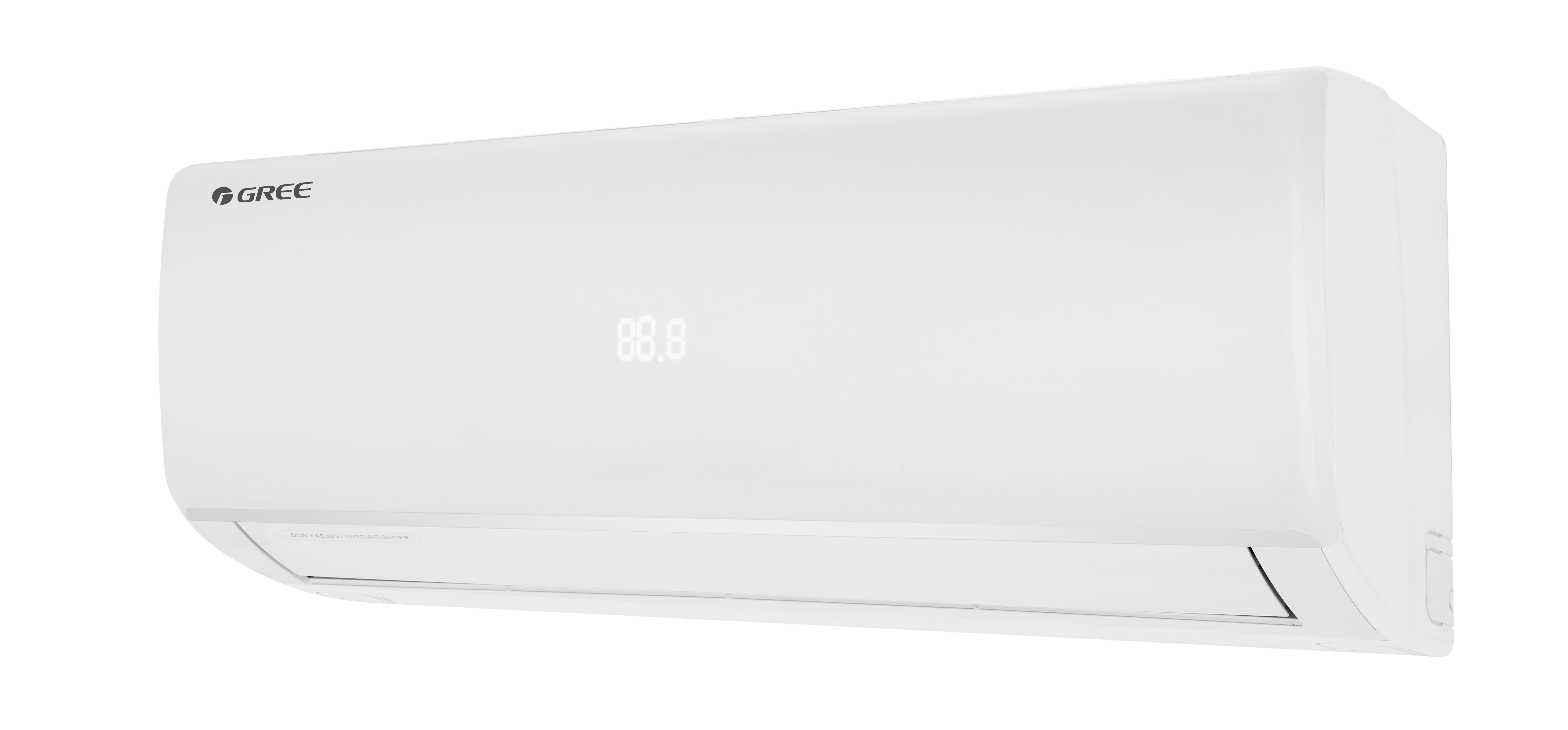

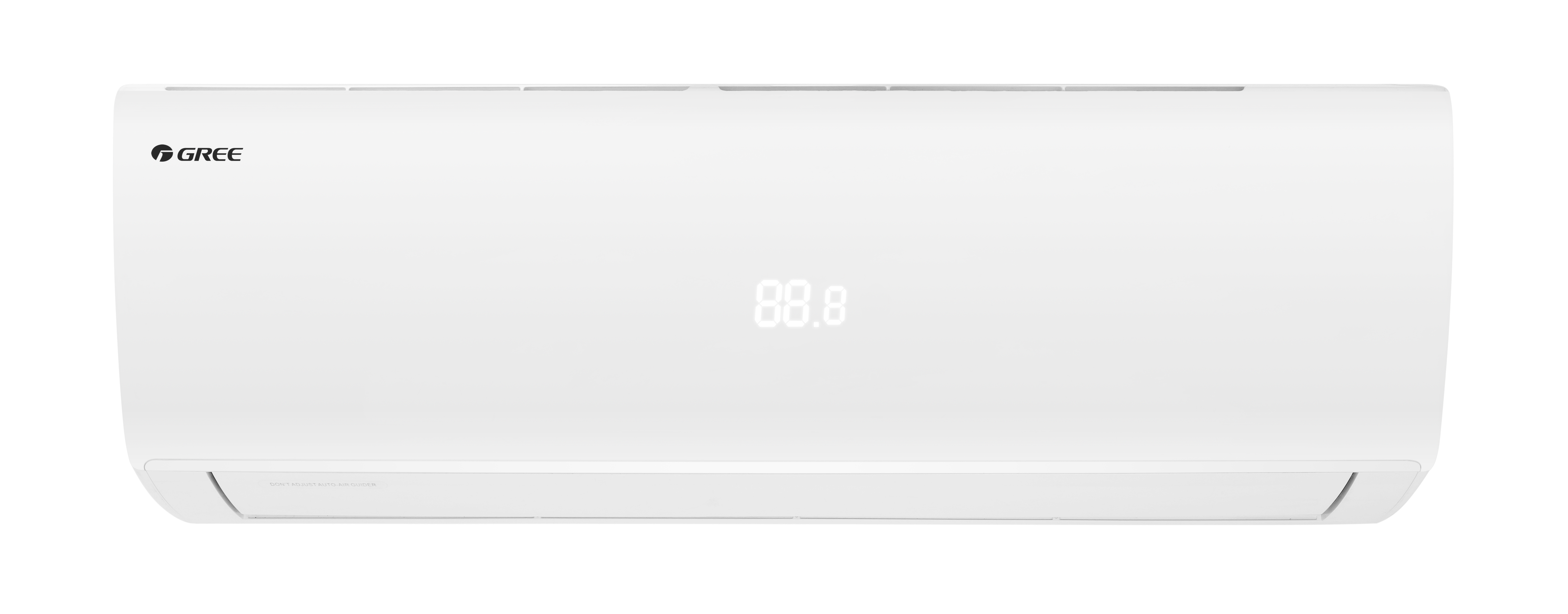

Gree Inverter HYPER R32 9.4KW Indoor
Product number: GWH32QF-K6DNB2D/I
Gree
| Product Group : | Hi-wall - Gree Hyper |
|---|---|
| Cooling Capacity : | 9.4 kW |
| EER : | 3.52 |
| Heating Capacity : | 10.3 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Pre-Equipped Wifi : | Optional |
| Refrigerant : | R32 |
| Voltage : | 230 V |
General Information
| Product Group : | Hi-wall - Gree Hyper | Condensate Water Pump Provided : | No |
|---|---|---|---|
| Model Number : | AC7209/I | Moisture Removal Volume : | 2.7 L/ph |
| Pre-Equipped Wifi : | Optional | Remote Control : | YAG1FB |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
Air Volume/Air Flow
| Air Flow : | 417 m³/h | Air Flow (Low/Medium/High) : | 208 / 278 / 403 m³/h |
|---|---|---|---|
| Air Flow Cooling (Low/Medium/High) : | 208 / 278 / 403 m³/h | Air Volume : | 417 m³/h |
Capacity
| Cooling Capacity : | 9.4 kW | Cooling Capacity (Min/Rated/Max) : | 2.1/9.4/10.6 kW |
|---|---|---|---|
| Heating Capacity : | 10.3 kW | Heating Capacity (Min/Rated/Max) : | 2.6/10.3/11.6 kW |
Electrical
| Max Current : | 14 A | Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|---|---|
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.38 | EER : | 3.52 |
|---|
Measurements
| Depth : | 253 mm | Height : | 326 mm |
|---|---|---|---|
| Net Weight : | 19.5 kg | Weight : | 19.5 kg |
| Width : | 1350 mm |
Pipes
| Pipe Dimension : | 1/4 in, 5/8 in, 6.35 mm, 15.88 mm |
|---|
Refrigerant
| Refrigerant : | R32 | Refrigerant Pipe Size : | 1/4-5/8 in, 6.35-15.88 mm |
|---|
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 23 / 32 / 40 dB(A) | Sound Pressure Level Cooling (Low/Medium/High) : | 23 / 32 / 40 dB(A) |
|---|---|---|---|
| Sound Pressure Level Heating (Low/Medium/High) : | 23 / 32 / 40 dB(A) |
Wire
| Wire Diameter Interconnection Cable : | 3C + E |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| Gree-Hyper-Brochure-EN.pdf | Brochures | 2.44 MB |
