Gree Inv Pular R32 8.5kW Wall Split ID 1/4 x 5/8

Product number: GWH28AGEXH-K6DNA1A/I

Gree

Product Group : Hi-wall - Gree Lomo / Pular
Description
The Gree Pular combines fresh air for healthier living with pure and elegant design, superior technology and efficient performance - this air conditioner is set to be the preferred choice for your living spaces. All backed by Gree's 6 year warranty parts and labour warranty.
General Information
Product Group : Hi-wall - Gree Lomo / Pular Condensate Water Pump Provided : No
Moisture Removal Volume : 3.0 L/ph Pre Equiped Wifi : Yes

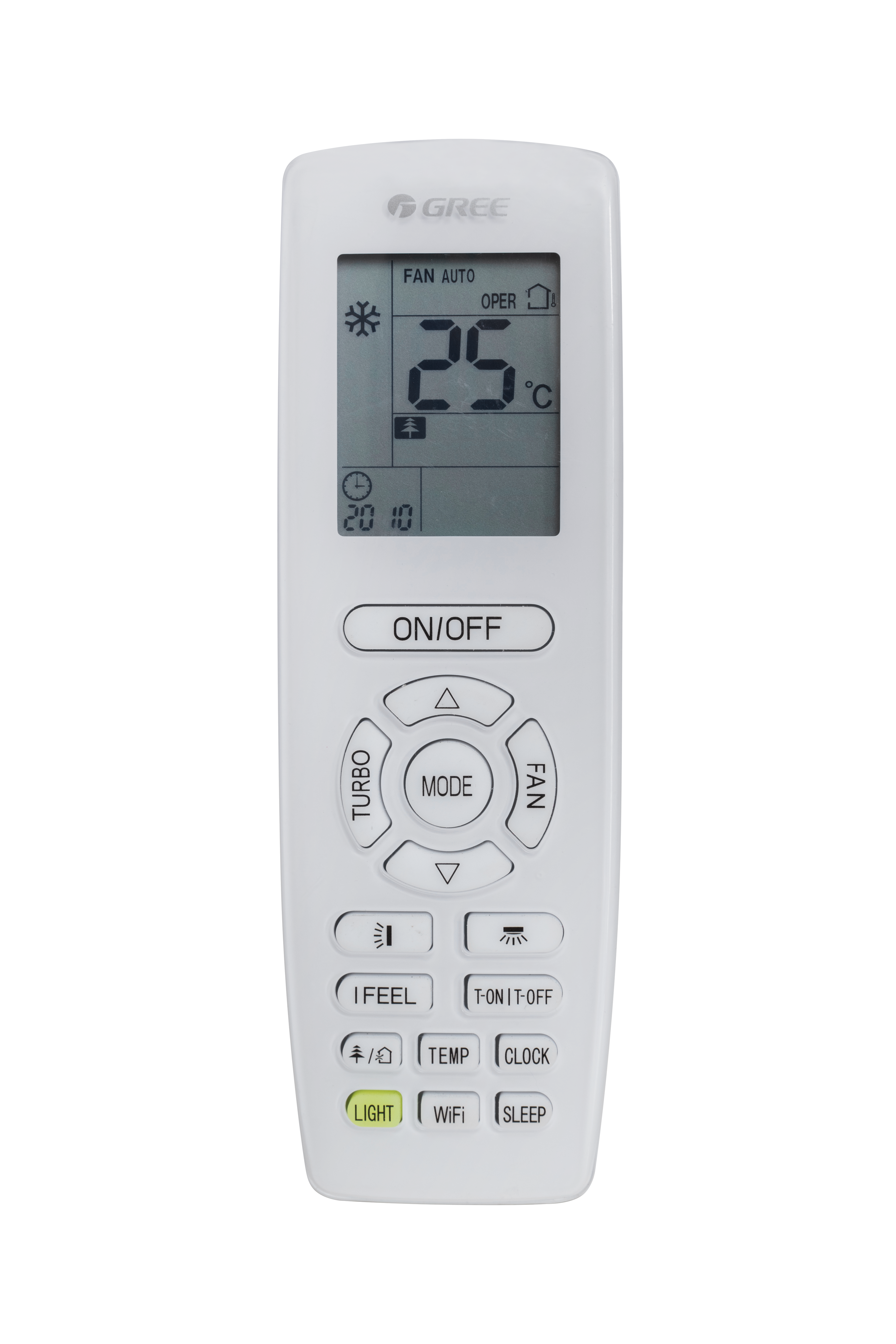

Remote Control : Yes
Additional Info
Indoor/ Outdoor/ Other : Indoor Single Split / Multi Split : Single Split
Air Volume/Air Flow
Air Flow : 1300 m³/h Air Volume : 361 m³/h
Capacity
Cooling Capacity : 8.5 kW Cooling Capacity (Min/Rated/Max) : 1.6 - 8.5 - 10.25 kW
Heating Capacity : 9.0 kW Heating Capacity (Min/Rated/Max) : 2.7 - 9.0 - 11.3 kW
Cooling Capacity R32
R32 Cooling Capacity Max : 10.25 kW R32 Cooling Capacity Min : 1.6 kW
R32 Cooling Capacity Rated : 8.5 kW
Electrical
Power Supply : 220-240/1/50 V/Ph/Hz Recommended Fuse : 25
Voltage : 230 V Voltage 50Hz : 230 V
Energy Efficiency/Performance
COP : 3.37 EER : 3.67
R32 SCOP : 3.37 R32 SEER : 3.67
Heating Capacity R32
R32 Heating Capacity Max : 11.3 kW R32 Heating Capacity Min : 2.7 kW
R32 Heating Capacity Rated : 9.0 kW
Indoor Unit Attributes
Net Weight (IU) : 16 kg
Measurements
Depth : 246 mm Height : 333 mm
Net Weight : 16 kg Weight : 16 kg
Width : 1075 mm
Pipes
Max Pipe Length Without Additional Refrigerant : 10 m Max Piping Length : 25 m
Pipe Dimension : 6.35 x 15.80 mm
Power Input R32
R32 Power Input Rated Cooling : 2.3 kW R32 Power Input Rated Heating : 2.65 kW
Refrigerant
Refrigerant : R32 Refrigerant Charge : 1.75 kg
Refrigerant Pipe Size : 1/4 - 5/8 in
Sound Power/Pressure
Sound Power Level : 48 dB(A) Sound Pressure Level : 32 dB(A)
Sound Pressure Level (Low/Medium/High/Quiet) : 32 / - / 49 dB(A)
Wire
Wire Diameter Interconnection Cable : 3C + E
File name Document Type Extension Size
Gree-Pular-Brochure-8pp-2023-AU.pdf Brochures pdf 6.43 MB
