Product number: GWH32QFXH-K6DNB2A/I
Gree
| Cooling Capacity : | 9.4 kW |
|---|---|
| EER : | 3.8 |
| Heating Capacity : | 10.3 kW |
| Indoor/ Outdoor/ Other : | Indoor |
| Pre-Equipped Wifi : | Yes |
| Product Group : | Hi-wall - Gree Hyper |
| Refrigerant : | R32 |
| Voltage : | 230 V |
| Condensate Water Pump Provided : | No | Product Group : | Hi-wall - Gree Hyper |
|---|---|---|---|

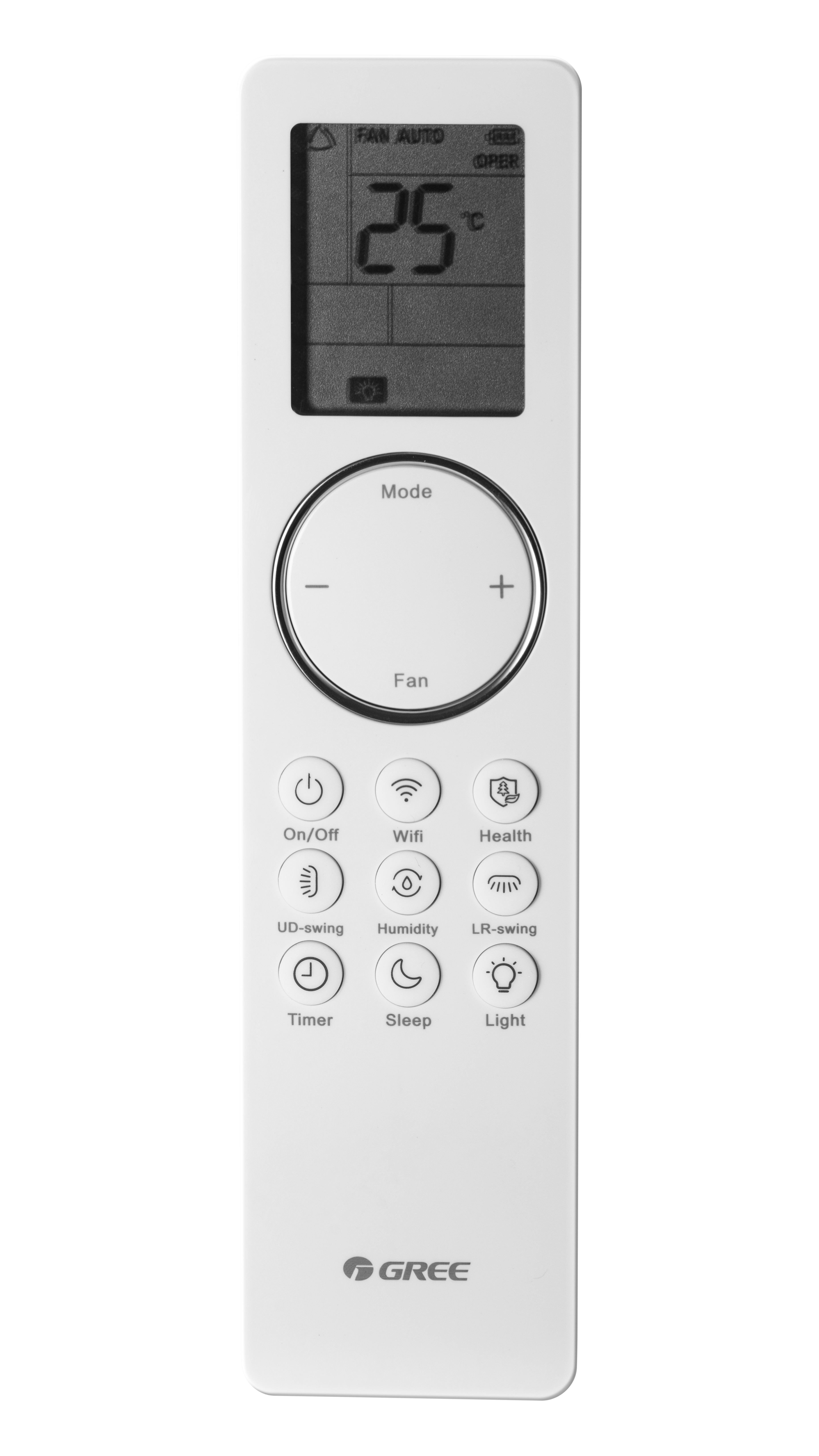

| Remote Control : | Yes |
| Indoor/ Outdoor/ Other : | Indoor | Single Split / Multi Split : | Single Split |
|---|
| Air Flow : | 1447 m³/h |
|---|
| Cooling Capacity : | 9.4 kW | Cooling Capacity (Min/Rated/Max) : | 2.1 - 9.4 - 12.2 kW |
|---|---|---|---|
| Heating Capacity : | 10.3 kW | Heating Capacity (Min/Rated/Max) : | 2.6 - 10.3 - 12.0 kW |
| Pre-Equipped Wifi : | Yes |
|---|
| R32 Cooling Capacity Rated : | 9.4 kW |
|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz | Recommended Fuse : | 20 |
|---|---|---|---|
| Voltage : | 230 V | Voltage 50Hz : | 230 V |
| COP : | 3.4 | EER : | 3.8 |
|---|---|---|---|
| R32 SCOP : | 3.4 | R32 SEER : | 3.8 |
| R32 Heating Capacity Rated : | 10.3 kW |
|---|
| Net Weight (IU) : | 20 kg |
|---|
| Depth : | 253 mm | Height : | 326 mm |
|---|---|---|---|
| Net Weight : | 20 kg | Weight : | 20 kg |
| Width : | 1350 mm |
| Max Pipe Length Without Additional Refrigerant : | 10 m | Max Piping Length : | 25 m |
|---|---|---|---|
| Pipe Dimension : | 6.35 x 15.80 mm |
| R32 Power Input Rated Cooling : | 2.4 kW | R32 Power Input Rated Heating : | 3.03 kW |
|---|
| Refrigerant : | R32 | Refrigerant Charge : | 1.9 kg |
|---|---|---|---|
| Refrigerant Pipe Size : | 1/4 - 5/8 in |
| Sound Power Level : | 47 dB(A) | Sound Pressure Level : | 34 dB(A) |
|---|---|---|---|
| Sound Pressure Level (Low/Medium/High/Quiet) : | 34/57 dB(A) |
| Wire Diameter Interconnection Cable : | 3C + E |
|---|
