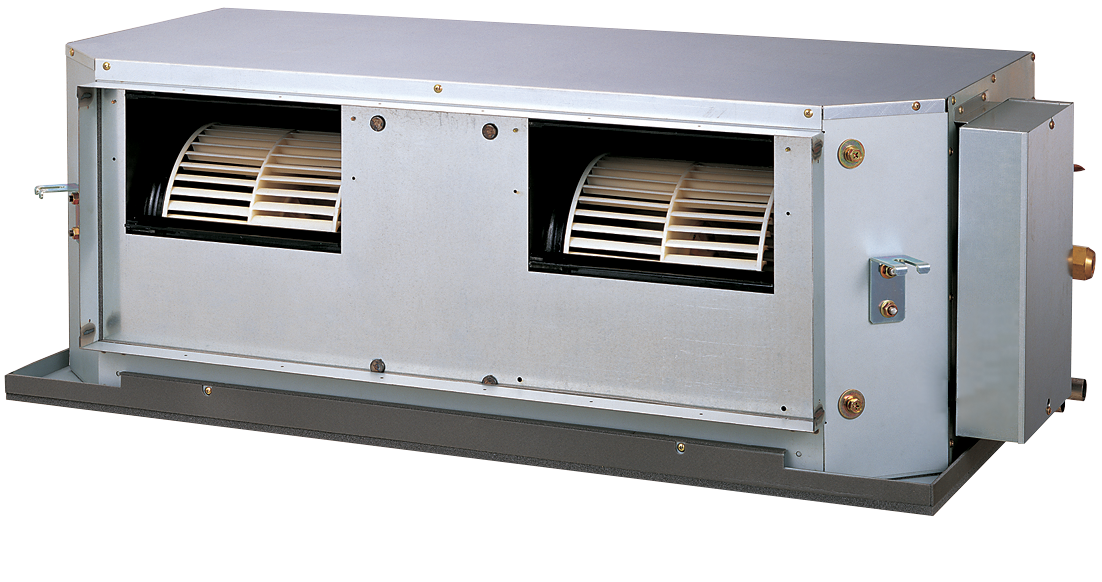

Fujitsu High Static Inverter Ducted R32 8.5kW 1 Ph ID 3/8 x 5/8

Product number: ARTH30KHTA

Fujitsu

Product Group : Ducted Systems - Fujitsu
Description
The High Static Single Phase R32 (High Performance) range is available in five models, ranging in capacity from 8.5kW to 16kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.FOR ALL AVAILABLE CONNECTABLE UNITS, please contact your local ACD Branch for pricing and availability.
General Information
Product Group : Ducted Systems - Fujitsu
Additional Info
Indoor/ Outdoor/ Other : Indoor
Capacity
Cooling Capacity : 8.5 kW Cooling Capacity (Min/Rated/Max) : 2.8 - 8.5 - 10.3 kW
Heating Capacity : 10 kW Heating Capacity (Min/Rated/Max) : 2.7 - 10.0 - 11.3 kW
Electrical
Max Current : 25 A Power Supply : 230/1/50 V/Ph/Hz
Energy Efficiency/Performance
EER : 3.62
Measurements
Depth : 500 mm Height : 400 mm
Net Weight : 39 kg Width : 1050 mm
Refrigerant
Refrigerant : R32 Refrigerant Pipe Size : 3/8 - 5/8 in
Wire
Wire Diameter Interconnection Cable : 3C + E
