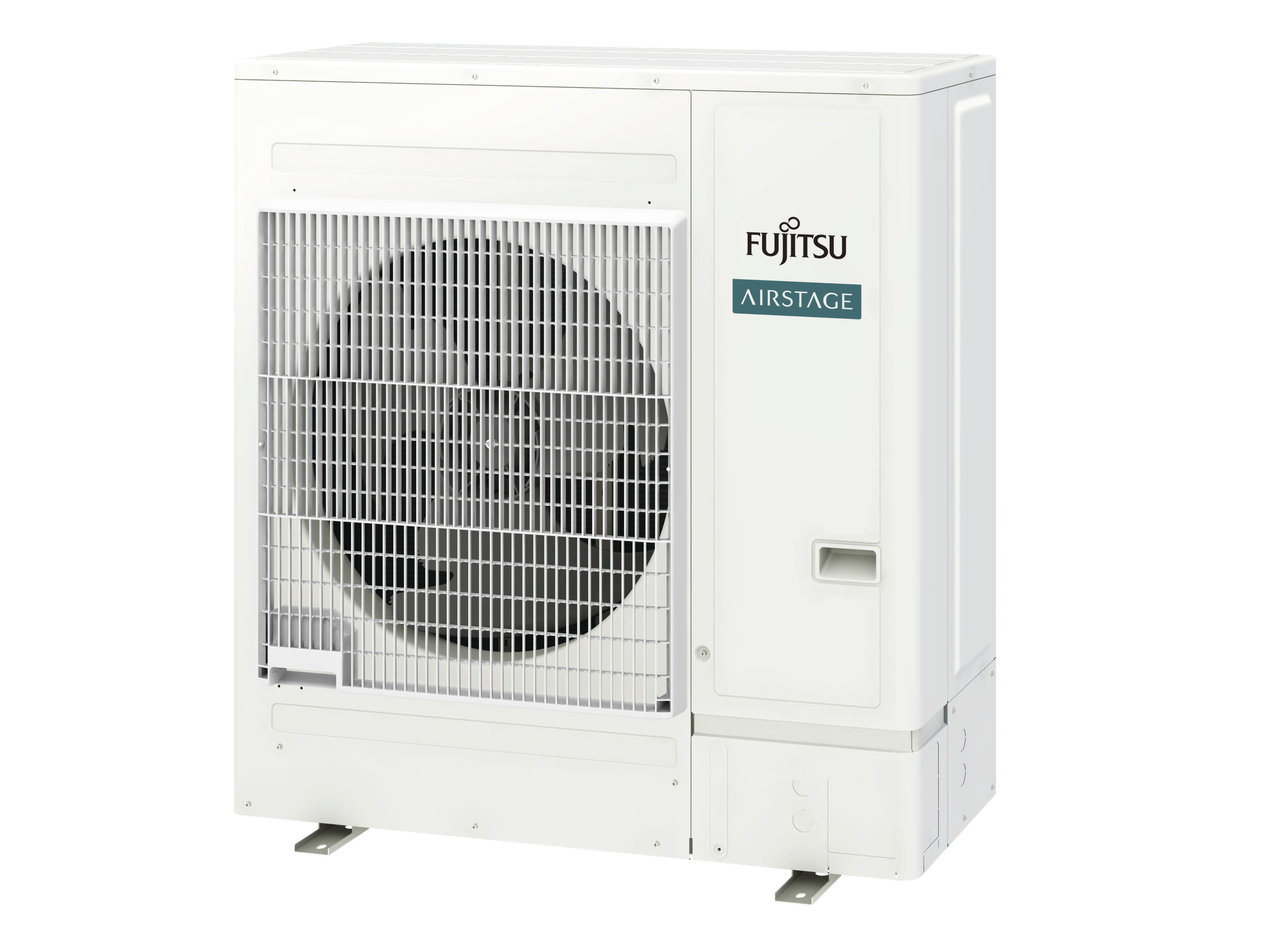

Fujitsu High Static Inverter Ducted R32 12.5kW 1 Ph OD 3/8 x 5/8

Product number: AOTH45KBTA

Fujitsu

Product Group : Ducted Systems - Fujitsu
Description
The High Static Single Phase R32 (High Performance) range is available in five models, ranging in capacity from 8.5kW to 16kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.FOR ALL AVAILABLE CONNECTABLE UNITS, please contact your local ACD Branch for pricing and availability.
General Information
Product Group : Ducted Systems - Fujitsu
Capacity
Cooling Capacity : 12.5 kW Heating Capacity : 14 kW
Electrical
Power Supply : 230/1/50 V/Ph/Hz
Measurements
Depth : 320 mm Height : 998 mm
Weight : 67 kg Width : 940 mm
Pipes
Max Piping Length : 50 m
Refrigerant
Refrigerant : R32
Temperature
Temperature Range Cooling : -10 - 50 °C Temperature Range Heating : -15 - 24 °C
