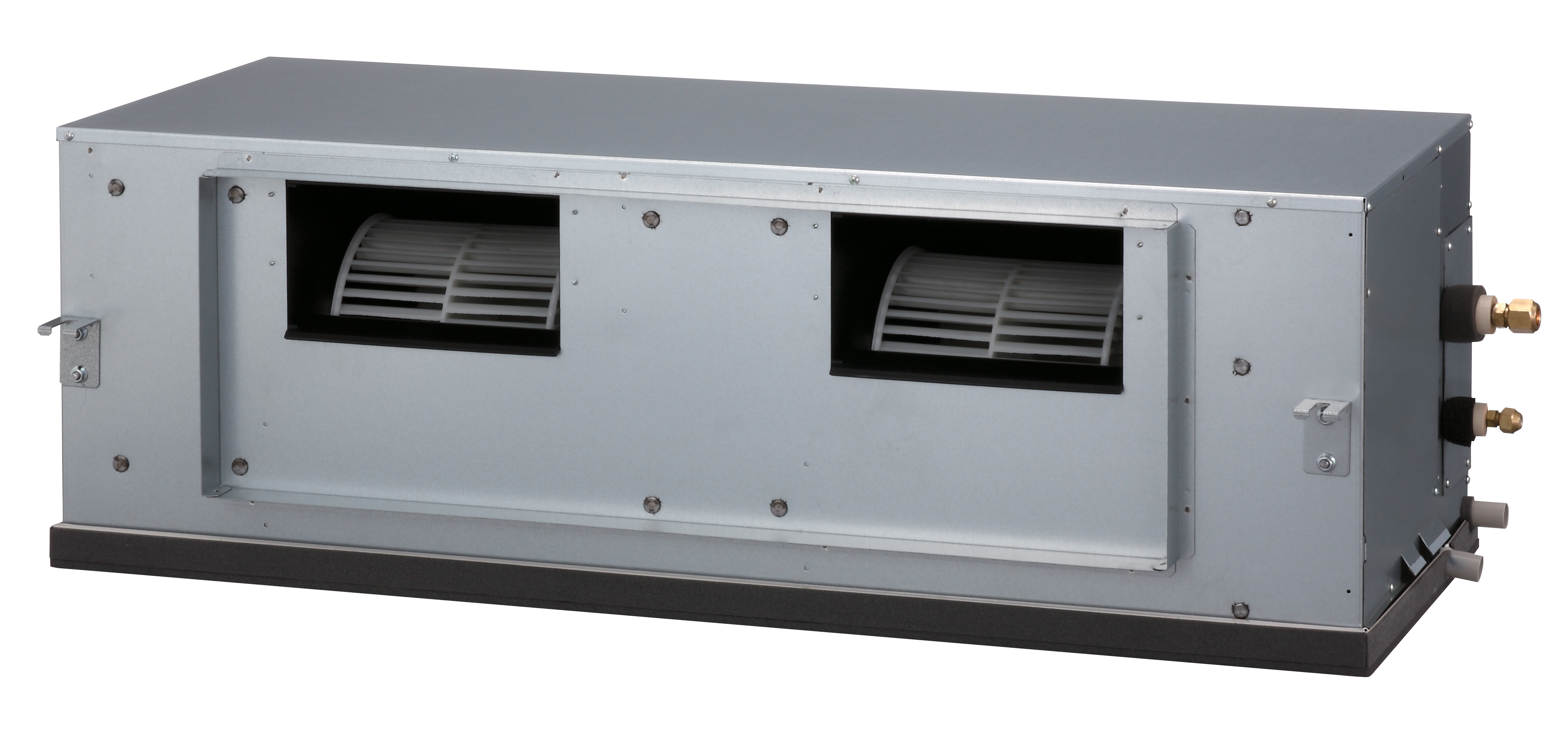

Fujitsu High Static Inverter Ducted R32 12.5kW 1 Ph ID 3/8 x 5/8

Product number: ARTH45KHTA

Fujitsu

Product Group : Ducted Systems - Fujitsu
Description
The High Static Single Phase R32 (High Performance) range is available in five models, ranging in capacity from 8.5kW to 16kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.FOR ALL AVAILABLE CONNECTABLE UNITS, please contact your local ACD Branch for pricing and availability.
General Information
Product Group : Ducted Systems - Fujitsu
Additional Info
Indoor/ Outdoor/ Other : Indoor
Cooling Capacity
Cooling Capacity : 12.5 kW Cooling Capacity (Min/Rated/Max) : 4.0 - 12.5 - 14.0 kW
Electrical
Max Current : 32 A Power Supply : 230/1/50 V/Ph/Hz
Energy Efficiency/Performance
EER : 3.29
Heating Capacity
Heating Capacity : 14 kW Heating Capacity (Min/Rated/Max) : 4.2 - 14.0 - 16.5 kW
Measurements
Depth : 490 mm Height : 425 mm
Net Weight : 53 kg Width : 1250 mm
Refrigerant
Refrigerant : R32 Refrigerant Pipe Size : 3/8 - 5/8 in
Wire
Wire Diameter Interconnection Cable : 3C + E
