Description

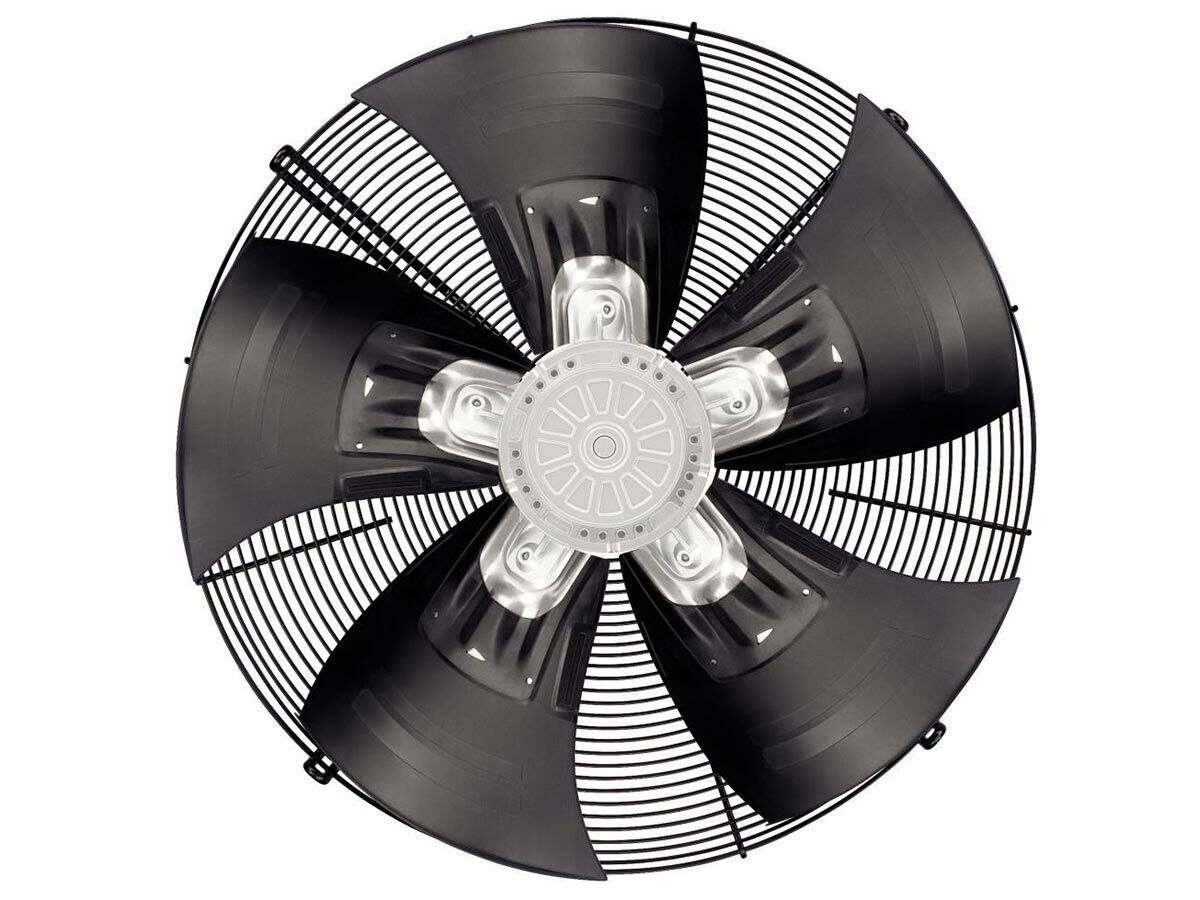

EBM-Papst EBM 630mm 1PH Fan Motor
Product number: S6E630-AN01-01
EBM Papst
| Product Group : | Motors - Axial Motors > 500mm |
|---|
General Information
| Number Of Poles : | 6 | Product Group : | Motors - Axial Motors > 500mm |
|---|
Air Volume/Air Flow
| Air Flow : | 11025 m³/h |
|---|
Electrical
| Capacitor : | 14 µF | Current : | 2.62 A |
|---|---|---|---|
| IP Class : | IP54 | Power Input : | 600 W |
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Diameter : | 630 mm | Fan Speed : | 925 r/min |
|---|
Measurements
| Height : | 750 mm | Length : | 750 mm |
|---|---|---|---|
| Weight : | 14 kg | Width : | 179.5 mm |
Sound Power/Pressure
| Sound Power Level : | 70 dB(A) | Sound Pressure Level : | 64 dB(A) |
|---|
Temperature
| Operating Temperature Range : | -30 °C to 60 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| ebmpapst-s6e630an0101-en-ast-1891123.pdf | Brochures | 606.36 KB |
