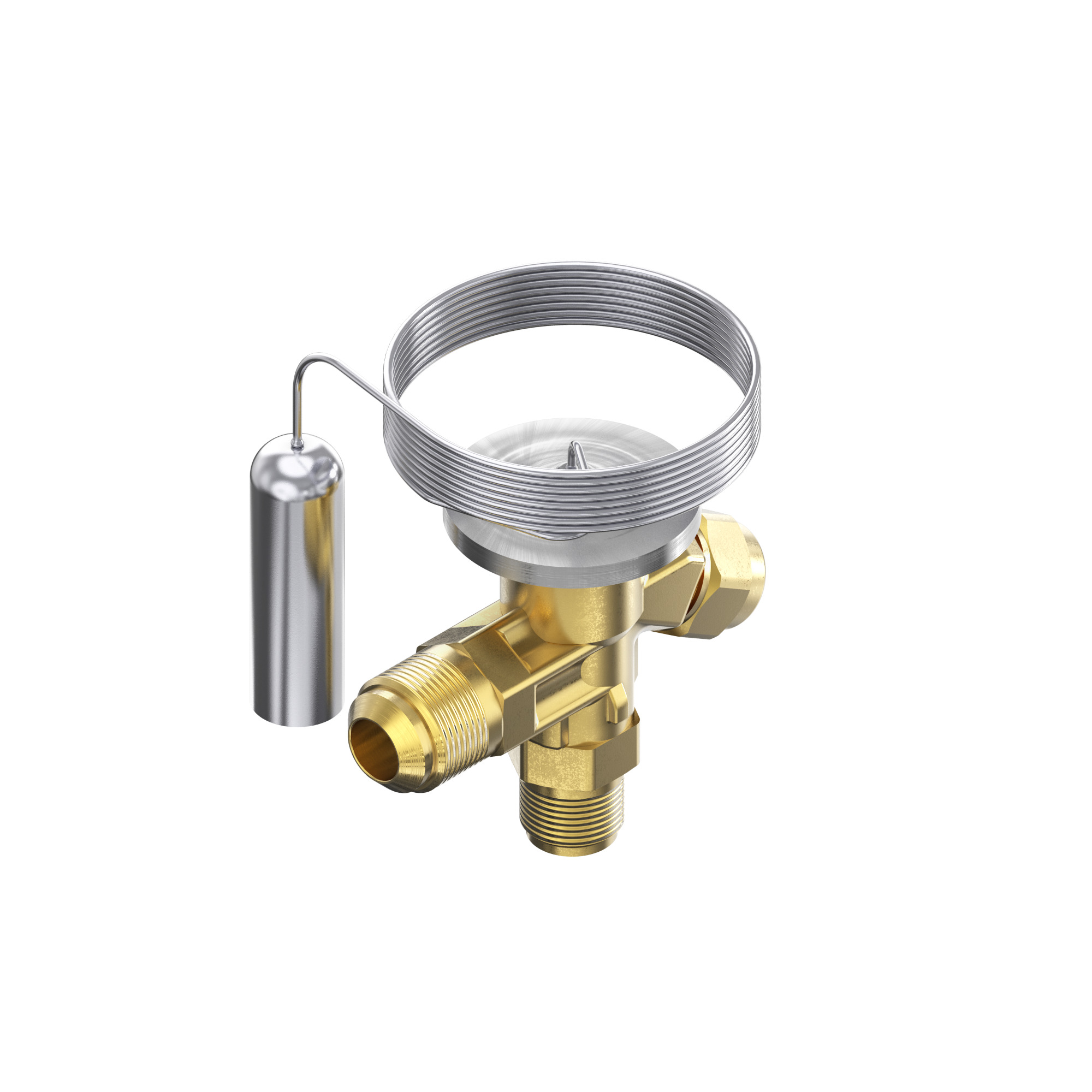

Danfoss TX Valve TX2 R22 (Flare)

Product number: 068Z3206

Danfoss

Product Group : Expansion Valves - Danfoss
Description

Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

  • Large temperature range
    • Equally applicable to freezing, refrigeration and air conditioning applications.
  • Interchangeable orifice assembly
    • easy storage
    • easy capacity matching
    • better service.
    • easy cleaning and replacement of filter
  • Rated capacities from 1 to 20.5 kW / 0.3 to 5.8 TR for R407C
  • Can be supplied with MOP (Max. Operating Pressure).
    • Protects the compressor motor against excessive evaporating pressure during normal operation
  • Stainless steel bulb and Danfoss patented bulb strap
    • Fast and easy to install
    • Good temperature transfer from pipe to bulb
  • Design protected
General Information
Model Number : 068Z3206 Product Group : Expansion Valves - Danfoss
Type : T 2
Additional Info
Family : T2
Connections
Inlet Connection Size : 3/8 in Inlet Type : Flare
Outlet Connection Size : 1/2 in Outlet Type : Flare
Logistical Information
Commodity Code : 84818079 Country Of Origin : DNK
EAN : 5702422114130 Gross Weight : 0.306 kg
Material
Body Material : Brass Connection Material : Brass
Measurements
Capillary Tube Length : 59.0 in, 1500 mm Net Weight : 0.28 kg
Weight : 0.28 kg
Pressure
Max Operating Pressure : 34.0 Bar Pressure Equalization : Internal
Refrigerant
Refrigerant : R22, R407C
Standards
Approval : EAC, LLC CDC TYSK
Temperature
Max Temperature : 10 °C Min Temperature : -40 °C
Static Superheat : 4 °C Superheat Setting : Adjustable
Temperature Range : -40-10 °C
Valves
Direction : Angleway Flow Direction : Single-flow
Flow Direction Indicator : Embossed 1-way arrow Fluid Group : 2
