Description

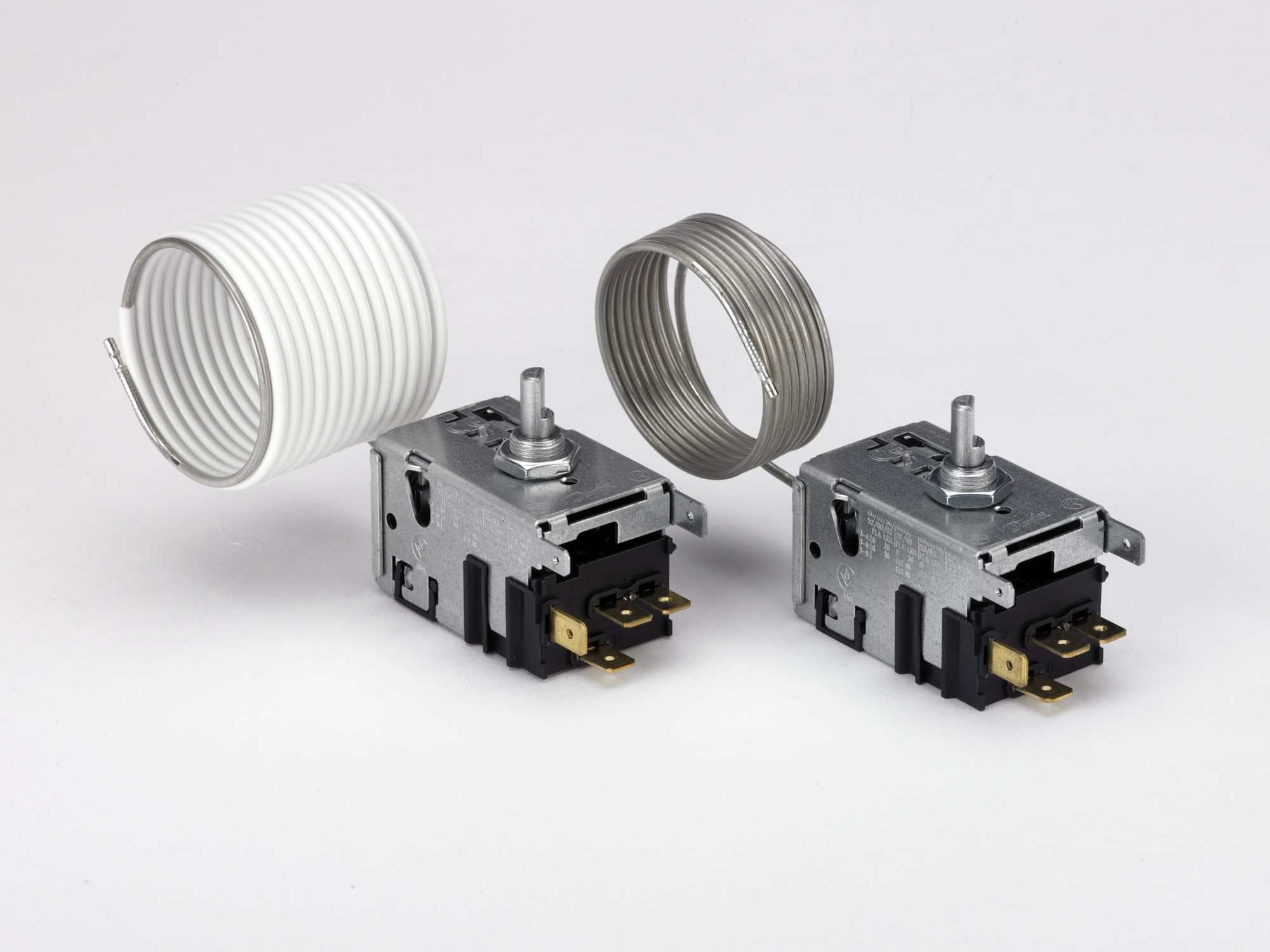

077B Service thermostat no. 3
Danfoss T/Stat No 3
Product number: 077B7003
Danfoss
| Product Group : | Mech Controls - Temperature |
|---|
General Information
| Product Group : | Mech Controls - Temperature | Type : | B62 |
|---|---|---|---|
| Used For : | Refrigerators; with automatic defrost |
Additional Info
| Family : | 077B |
|---|
Electrical
| Contact Function : | NC |
|---|
Logistical Information
| Commodity Code : | 90321080 | Country Of Origin : | SVK |
|---|---|---|---|
| EAN : | 5702424006570 | Gross Weight : | 0.148 kg |
Measurements
| Capillary Tube Length : | 63.0 in, 1600 mm | Net Weight : | 0.12 kg |
|---|---|---|---|
| Weight : | 0.12 kg |
Standards
| Approval : | BEAB, CE, CMIM, EAC, LLC CDC TYSK, cURus |
|---|
Temperature
| Cold Cut In : | 3.5 °C | Cold Cut Out : | -27.5 °C |
|---|---|---|---|
| Warm Cut In : | 3.5 °C | Warm Cut Out : | -11.0 °C |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md2012-2-ebd-a5-ast-id365946881757-0101.pdf | Conformity Declaration | 54.09 KB | |
| manufacturer-s-declaration-danfoss-md2016-china-rohs-a02-ast-id365946887762-0101.pdf | Conformity Declaration | 67.82 KB | |
| electrical-safety-certificate-ul-e31024-ast-id365930080167-0201.pdf | Conformity Declaration | 5.22 MB | |
| eu-declaration-danfoss-eu-d-2018-11-a3-ast-id367440914601-0201.pdf | Conformity Declaration | 780.37 KB | |
| brochure-electromechanical-cold-controls-en-ast-ad300657221431en-gb0101.pdf | Brochures | 3.2 MB | |
| service-kit-types-b0---b62-ast-ai357347699370en-000101.pdf | Technical Literature | 1.95 MB | |
| barometric-pressure-information-ast-ai157286417892en-000201.pdf | Technical Literature | 526.23 KB |
