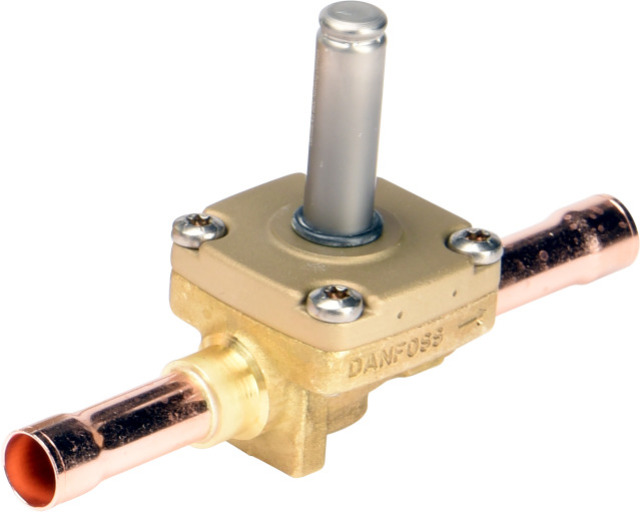

Danfoss Solenoid Valve EVR15 5/8 (Solder)

Product number: 032L1228

Danfoss

Danfoss Solenoid Valve EVR15 5/8 (Solder)
Product Group : Solenoid Valves - Danfoss
Refrigerant : R22, R32, R125, R134a, R152a, R290, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R512A, R513A, R513B, R515, R515A, R1234yf, R1234ze(E)
Description

EVR is a direct or servo operated solenoid valve suitable for liquid, suction, and hot gas lines with most refrigerants, including flammable refrigerants. EVR valves and coils are sold separately.

Features:

  • Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
  • Supplied in versions normally closed (NC) and normally open (NO) with de-energized coil
  • Wide choice of coils for AC and DC
  • Suitable for most refrigerants, including flammable refrigerants
  • Designed for media temperatures up to 105 °C
General Information
Product Group : Solenoid Valves - Danfoss Approval : EAC, LLC CDC EURO-TYSK, UL
CV Value : 3.800 gal/min Function : NC
Model Number : 032L1228 Type : EVR 15
Additional Info
Family : EVR v2
Connections
Connection Size : 16 mm Connection Type : Solder, ODF
Inlet Connection Size : 16.00 mm Inlet Type : Solder, ODF
Outlet Connection Size : 16.00 mm Outlet Type : Solder, ODF
Kv Values
Kv Value : 3.300 m³/h
Logistical Information
Commodity Code : 84818059 Country Of Origin : POL
EAN : 5702428952835 Gross Weight : 0.854 kg
Material
Connection Material : Copper
Measurements
Net Weight : 0.73 kg Weight : 0.73 kg
Pressure
Max OPD, 10W AC : 38 Bar Max Operating Pressure : 45.2 Bar
Min OPD : 0.030 Bar
Refrigerant
Refrigerant : R22, R32, R125, R134a, R152a, R290, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R512A, R513A, R513B, R515, R515A, R1234yf, R1234ze(E)
Temperature
Ambient Temperature : -40 - 80 °C Ambient Temperature Range : -40-80 °C
Medium Temperature Range : -40-105 °C Medium Temperature Range Note : DEFROST MAX 130 °C
Valves
Actuator Size : 13.5 mm Coil : No
Direction : Straightway Fluid Group : 1, 2
Orifice Size : 14.00 mm Valve Operation : SERVO-DIAPHRAGM
