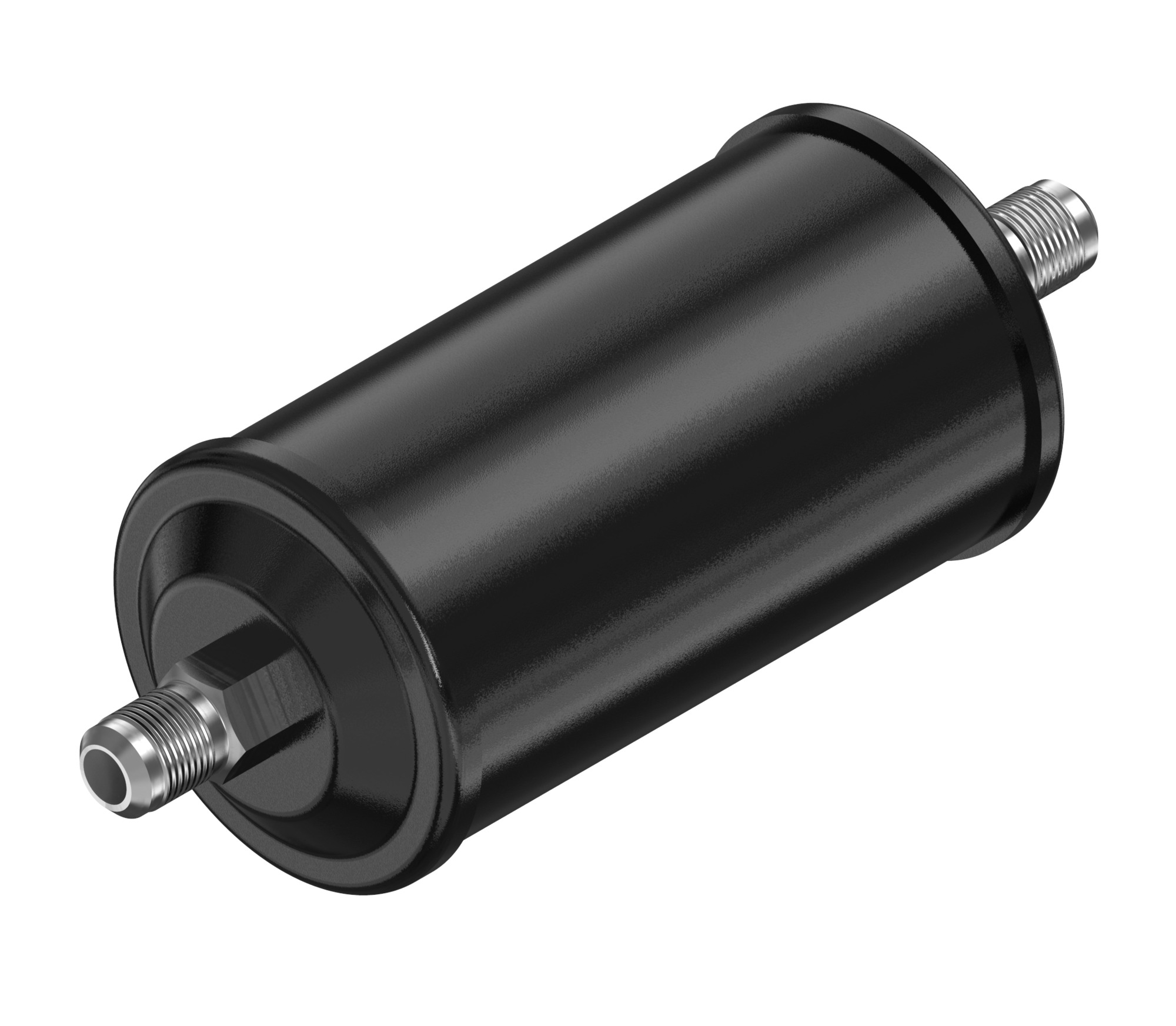

Product number: 023Z0110
Danfoss
| Product Group : | Driers - Danfoss |
|---|---|
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
Type DML/DMLE driers have a core composition of 100% Molecular Sieve, while type DCL/DCLE contain 80% Molecular Sieve with 20% activated alumina. Type DML/DMLE driers are designed for applications requiring the highest moisture capacity. Type DML/DMLE driers are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections.
| Product Group : | Driers - Danfoss | Activated Alumina / Molec. Sieve. : | 0/100 % |
|---|---|---|---|
| Approval : | UL | Model Number : | 023Z0110 |
| Specification Key : | DML 415 | Type : | DML 415 |
| Family : | DML |
|---|
| Acid Capacity : | 3.28 g | Capacity : | R32: 69.3 kW, R134a: 45.4 kW, R404A: 32.0 kW, R407C: 46.6 kW, R410A: 47.3 kW, R507: 31.0 kW |
|---|---|---|---|
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
| Connection Type : | Flare | Inlet Connection Size : | 5/8 in, 16.0 mm |
|---|---|---|---|
| Inlet Type : | Flare | Outlet Connection Size : | 5/8 in, 16.0 mm |
| Outlet Type : | Flare |
| Core : | Solid core | Core Size : | 41 cu.in. |
|---|---|---|---|
| Flow Capacity kW : | R32: 69.3, R134a: 45.4, R290: --, R404A: 32.0, R407C: 46.6, R410A: 47.3, R507: 31.0 | Shell Volume : | 0.97 L |
| Solid Core Surface : | 64.26 in², 415 cm² | Solid Core Volume : | 21.69 in³, 355 cm³ |
| Drying Capacity 24°C (Drops of Water) : | R32: 1281, R134a: 1522, R290: --, R404A: 1585, R407C: 1478, R410A: 1377, R507: 1660 | Drying Capacity 52°C (Drops of Water) : | R32: 1179, R134a: 1393, R290: --, R404A: 1501, R407C: 1362, R410A: 1225, R507: 1493 |
|---|
| Commodity Code : | 84212980 | Country Of Origin : | MEX |
|---|---|---|---|
| EAN : | 5702428159432 | Gross Weight : | 1.974 kg |
| Body Material : | Steel | Connection Material : | Steel |
|---|
| Net Weight : | 1.87 kg | Volume : | 0.620 L |
|---|---|---|---|
| Weight : | 1.87 kg |
| Max Operating Pressure : | 46.0 Bar |
|---|
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
| Max Temperature : | 70 °C | Medium Temperature Range : | -40-70 °C |
|---|---|---|---|
| Min Temperature : | -40 °C | Temperature Range : | -40-70 °C |
| Flow Direction Indicator : | Label printed 1-way arrow | Fluid Group : | 2 |
|---|
