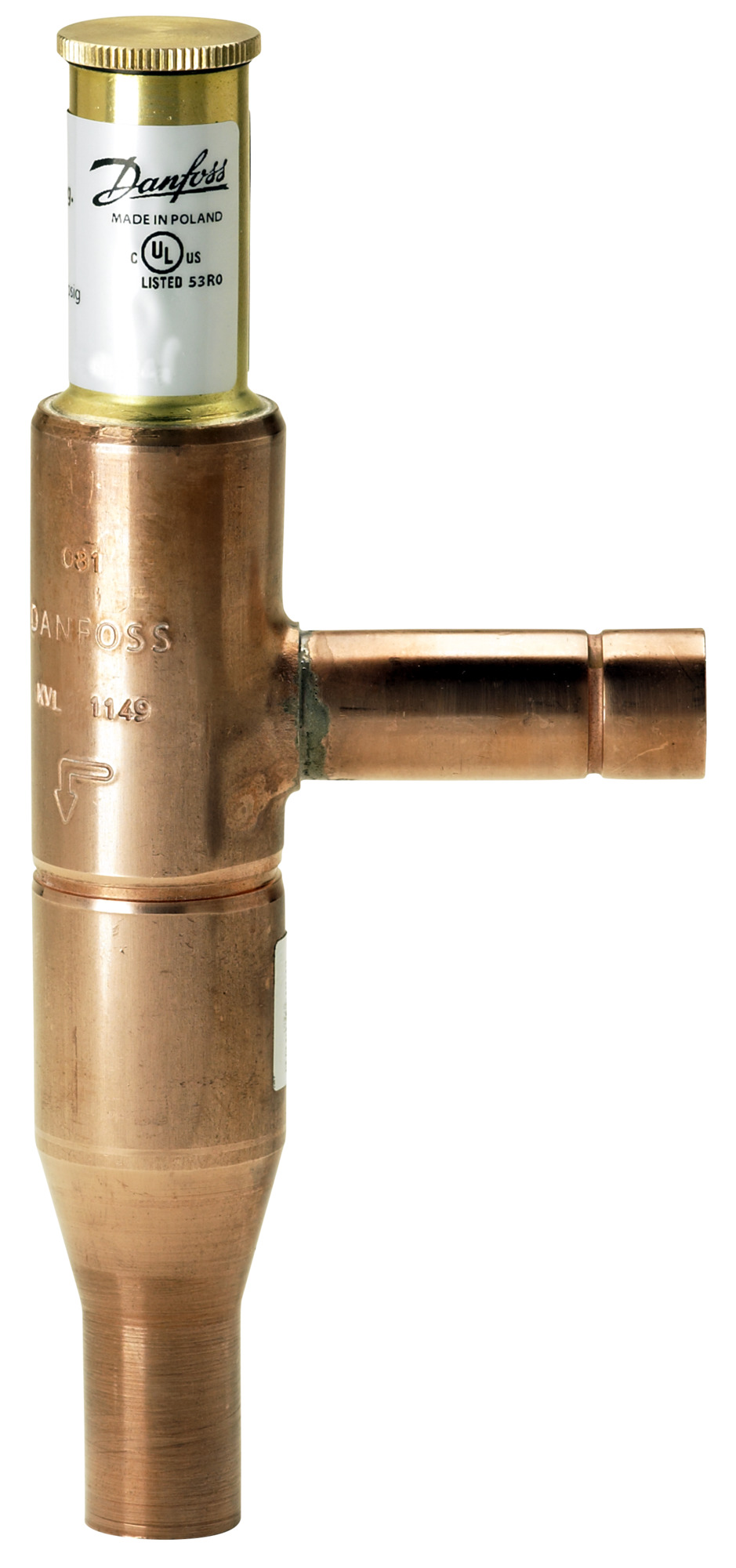

Danfoss CPR Valve KVL15

Product number: 034L0049

Danfoss

Product Group : Pressure Reg - Danfoss
Refrigerant : R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234yf, R1234ze(E), R1270
Description

KVL crankcase pressure regulators are used to protect the compressor motor against overload experienced during startup after long off periods or just after defrost periods. They are installed in the suction line of refrigeration systems.

General Information
Product Group : Pressure Reg - Danfoss Approval : C UL US LISTED, EAC, LLC CDC TYSK, RoHS, RoHS China
CV Value : 3.700 gal/min Type : KVL 15
Additional Info
Additional Info : Max. extern.bellow press.26bar Family : KVL
Capacity R134a
R134a Capacity : 5.30 kW
Capacity R22
R22 Capacity : 7.10 kW
Capacity R407C
R407C Capacity : 6.50 kW
Connections
Connection Size : 5/8" Connection Type : Solder, ODF
Inlet Connection Size : 5/8 in, 16.00 mm Inlet Type : Solder, ODF
Outlet Connection Size : 5/8 in, 16.00 mm Outlet Type : Solder, ODF
Kv Values
Kv Value : 3.200 m³/h
Logistical Information
Commodity Code : 84818059 Country Of Origin : POL
EAN : 5702428411721 Gross Weight : 0.366 kg
Measurements
Net Weight : 0.32 kg Weight : 0.32 kg
Pressure
Max Operating Pressure : 18.0 Bar Regulating Range : 0.2-6.0 Bar
Test Pressure : 19.8 Bar
Refrigerant
Refrigerant : R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234yf, R1234ze(E), R1270
Temperature
Factory Setting : 2.00 Bar Medium Temperature Range : -60-130 °C
Valves
Flow Direction Indicator : Engraved 1-way arrow
