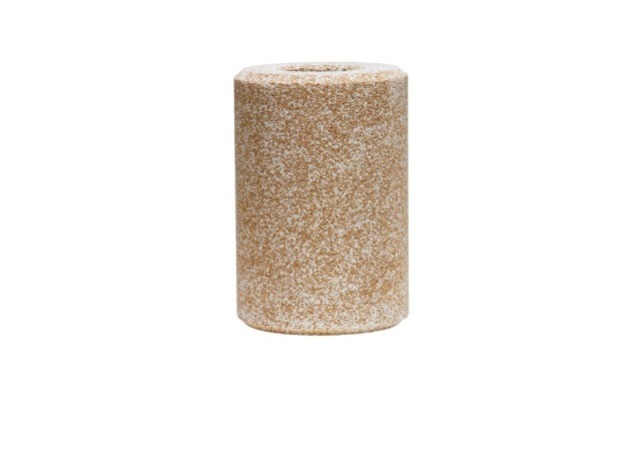

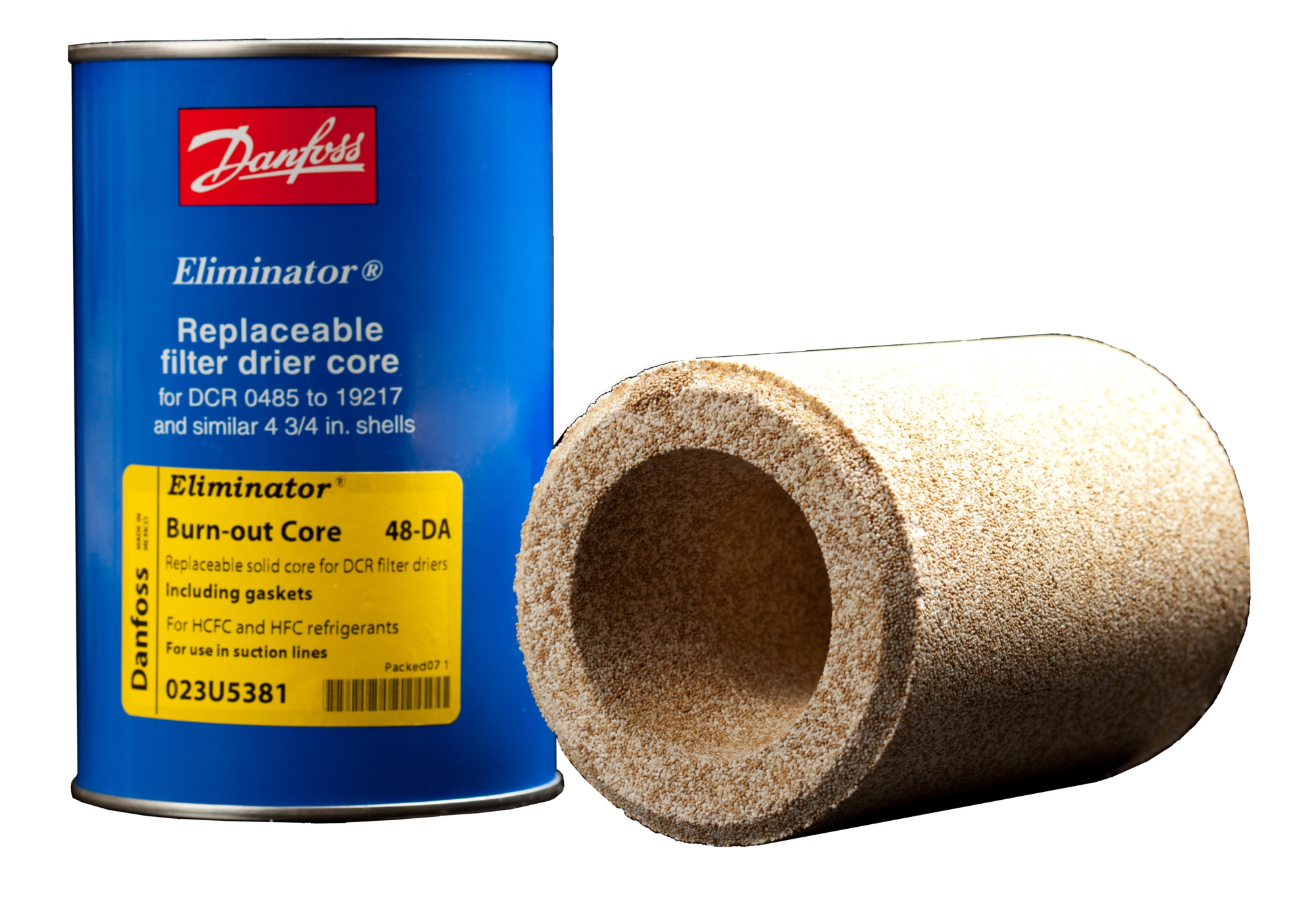

Danfoss Burnout Core 48-DA

Product number: 023U5381

Danfoss

Product Group : Driers - Danfoss
Description

Danfoss ELIMINATOR® filter driers with replaceable solid core, type DCR, are for use in liquid and / or suction lines in refrigeration, freezing and air-conditioning systems.

Besides being able to meet the demanding requirements of high working pressure levels when operating with R410A thanks to replaceable solid cores the DCR programme offers flexibility with respect to different applications.

Available with copper connections.

General Information
Product Group : Driers - Danfoss Activated Alumina / Molec. Sieve. : 70/30 %
Model Number : 023U5381 Parts Included : 1 x Gasket (023U0743), 2 x Felt gasket (633L5312)
Specification Key : 48-DA Type : 48-DA
Additional Info
Additional Info : Burnout block Family : DCR-DA
Capacity
Acid Capacity : 24.85 g
Driers
Core Size : 48 cu.in. Solid Core Surface : 95.00 in², 612 cm²
Solid Core Volume : 44.00 in³, 727 cm³
Logistical Information
Commodity Code : 68159900 Country Of Origin : MEX
Measurements
Net Weight : 0.82 kg Weight : 0.82 kg
Refrigerant
Refrigerant : R22/R407C, R134a, R290, R401A, R402A, R404A, R409A, R410A, R421A, R422D, R502, R507A
