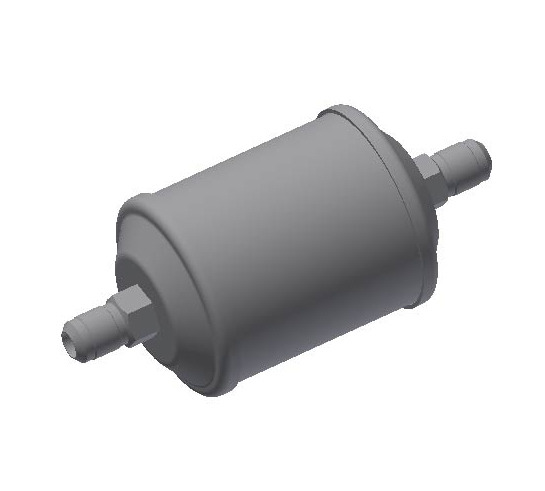

Danfoss - Bi Flow Drier 163 3/8" ODF

Product number: 023Z1415

Danfoss

PLEASE LOGIN TO SEE PRICES

Further products

Product Group :	Driers - Danfoss
Refrigerant :	R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E)

Description

Hermetic bi-flow filter driers, types DMB and DCB are for use in liquid lines on heat pumps. Hermetic bi-flow filter driers have built-in check valves which ensure that refrigerant liquid always flows through the filter driers from the outer side of the filter core towards the center. Thus all dirt particles are retained irrespective of flow direction.

DMB and DCB filter driers ensure fast and effective adsorption of moisture as well as organic and inorganic acids. When building heat pump systems, the use of bi-flow filters can, depending on the type of system, save up to ten solder connections. This reduces production costs and the number of potential leakage points.

Available with flare and solder (cu-plated steel) connections

General Information

Product Group :	Driers - Danfoss	Activated Alumina / Molec. Sieve. :	0/100 %
Approval :	UL	Specification Key :	DMB 163
Type :	DMB 163

Capacity

Acid Capacity :	0.72 g	Capacity :	R32: 21.3 kW, R134a: 14.0 kW, R404A: 9.8 kW, R407C: 14.3 kW, R410A: 14.5 kW, R507: 9.5 kW
Liquid Capacity Conditions (ARI 710-2009) :	Delta p=0.07bar, tliq= 30°C, tvap=-15°C

Connections

Inlet Connection Size :	3/8 in, 10.0 mm	Inlet Type :	Flare
Outlet Connection Size :	3/8 in, 10.0 mm	Outlet Type :	Flare

Driers

Core :	Solid core	Core Size :	16 cu.in.
Flow Capacity kW :	R32: 21.3, R134a: 14.0, R290: --, R404A: 9.8, R407C: 14.3, R410A: 14.5, R507: 9.5	Shell Volume :	0.42 L
Solid Core Surface :	19.93 in², 129 cm²	Solid Core Volume :	4.89 in³, 80 cm³

Drying Capacity

Drying Capacity 24°C (Drops of Water) :	R32: 283, R134a: 337, R290: --, R404A: 351, R407C: 327, R410A: 305, R507: 367	Drying Capacity 52°C (Drops of Water) :	R32: 261, R134a: 308, R290: --, R404A: 332, R407C: 301, R410A: 271, R507: 331

Logistical Information

Commodity Code :	84212980	Country Of Origin :	MEX
EAN :	5702428105002	Gross Weight :	0.97 kg

Material

Body Material :	Steel	Connection Material :	Steel

Measurements

Net Weight :	0.93 kg	Volume :	0.312 L
Weight :	0.93 kg

Pressure

Max Operating Pressure :	46.0 Bar

Refrigerant

Refrigerant :	R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E)

Temperature

Max Temperature :	70 °C	Min Temperature :	-40 °C
Temperature Range :	-40-70 °C

Valves

Flow Direction Indicator :	Label printed 1-way arrow	Fluid Group :	2

File name	Document Type	Extension	Size
Hermetic-bi-flow-filter-drier-type-DMB-and-DCB.pdf	Technical literature	pdf	1.44 MB
ELIMINATOR-Hermetic-biflow-filter-drier-types-DMB-and-DCB.pdf	Installation Manual	pdf	399.89 KB
Manufacturer-s-Declaration-Danfoss-MD-023U9601-AH.pdf	Conformity Declaration	pdf	1.83 MB
Manufacturer-s-Declaration-Danfoss-MD-023Z9610-AA.pdf	Conformity Declaration	pdf	245.66 KB
Mechanical-Safety-Certificate-UL-SA6398.pdf	Conformity Declaration	pdf	548.69 KB
