Description
The world’s best-selling mini pump offers unrivalled reliability and performance.

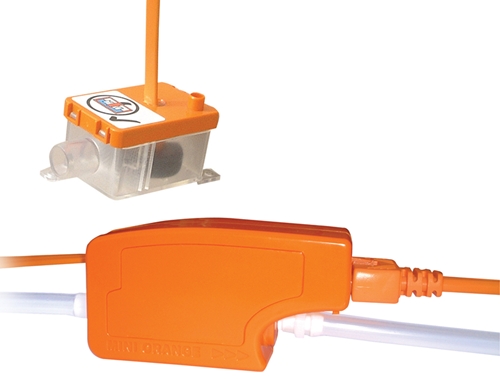

Aspen Mini Orange
Product number: FP2212
Aspen Pumps
| Product Group : | Condensate Pumps |
|---|
General Information
| Model Number : | Mini Orange (FP2212) | Product Group : | Condensate Pumps |
|---|---|---|---|
| Type : | Condensate water pump |
Alarm
| Alarm : | NF 3(A) |
|---|
Capacity
| Capacity : | 16 kW |
|---|
Condensate Pumps
| Flow Rate at 0 m : | 12 L/h | Max Discharge Head : | 10 m |
|---|---|---|---|
| Max Flow Rate : | 12 dm³/h | Max Suction Head : | 2 m |
| Max Water Temperature : | 40 °C | Tank Dimension : | 34x80x39 mm |
Connections
| Outlet Connection Size : | 14 mm |
|---|
Electrical
| Current : | 0.11 A | IP Class : | IP21 |
|---|---|---|---|
| Power Input : | 16 W | Power Supply : | 230/1/50-60 V/Ph/Hz |
Logistical Information
| Commodity Code : | 84138100 | Country Of Origin : | CHN |
|---|
Measurements
| Depth : | 116 mm | Height : | 51 mm |
|---|---|---|---|
| Net Weight : | 0.25 kg | Width : | 39 mm |
Pressure
| Water Flow Pressure : | 12 L/h |
|---|
Sound Power/Pressure
| Sound Pressure Level : | 23 dB(A) | Sound Pressure Level LP 1 m : | 21 dB(A) |
|---|
Temperature
| Max Temperature : | 40 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| fp2212-mini-orange-tech-sheet-2016-website-ast-332568.pdf | Technical Literature | 216.61 KB | |
| mini-maxi-orange-manual-ast-332560.pdf | Installation Manual | 935.98 KB |
